| 型號 | 溫度 | 封裝 | 備注 |
| MAX1482CPD MAX1482CSD MAX1482EPD MAX1482ESD MAX1483CPA MAX1483CSA MAX1483CUA MAX1483EPA MAX1483ESA |
0°C to +70°C 0°C to +70°C -40°C to +85°C -40°C to +85°C 0°C to +70°C 0°C to +70°C 0°C to +70°C -40°C to +85°C -40°C to +85°C |
14 PDIP 14 SO 14 PDIP 14 SO 8 PDIP 8 SO 8 µMAX® 8 PDIP 8 SO |
20µA、1/8單位負載、限擺率、RS-485收發器 |
PDF和WORD文檔下載
MAX1482, MAX1483
MAX1482, MAX1483
| 關鍵特性 | 應用/使用 | |||||||||||
|
|
| Key Specifications: RS-422/485 Line Driver/Receivers | |||||||||||||||||||||
| Part Number | Tx/Rx | Duplex | VSUPPLY (V) |
ICC (mA) |
Data Rate (kbps) |
Tx EN | Rx EN | ICC (Shutdn.) (µA) |
Rx/Tx on Bus | Rx Failsafe w/ Inputs | Features | Slew Rate Limiting | Package/Pins | Smallest Available Pckg. (mm2) |
Oper. Temp. (°C) |
Price | |||||
| typ | min | typ | max w/pins | See Notes | |||||||||||||||||
| MAX1482 | 1Tx + 1Rx | Full | 5 | 0.02 | 250 | Yes | Yes | 0.1 | 256 | Open | Low Power Shutdown | No |
|
54 |
|
$1.15 @1k | |||||
| MAX1483 | Half |
|
16 | $1.15 @1k | |||||||||||||||||
| See All RS-422/485 Line Driver/Receivers (159) | |||||||||||||||||||||

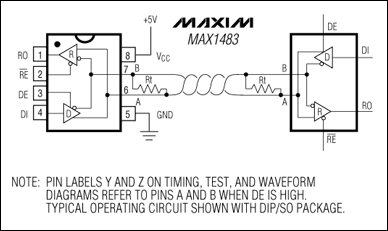

| 圖表 |
|
