| 型號 | 溫度 | 封裝 | 備注 |
| MAX4130EUK-T MAX4131C/D MAX4131EBT-T MAX4131EUA MAX4131ESA MAX4132ESA MAX4132EUA MAX4133C/D MAX4133ESD MAX4134ESD |
-40°C to +85°C 0°C to +70°C -40°C to +85°C -40°C to +85°C -40°C to +85°C -40°C to +85°C -40°C to +85°C 0°C to +70°C -40°C to +85°C -40°C to +85°C |
5 SOT23-5 Dice 6 UCSP-6 8 µMAX 8 SO 8 SO 8 µMAX Dice 14 SO 14 SO |
單/雙/四路、寬帶、低功耗、單電源、滿擺幅輸入/輸出運算放大器 |
PDF和WORD文檔下載
MAX4130, MAX4131, MAX4132, MAX4133, MAX4134
MAX4130, MAX4131, MAX4132, MAX4133, MAX4134
| 關鍵特性 | 應用/使用 | |||||||||||||||||||||||||||||
|
|
| Key Specifications: Operational Amplifiers | ||||||||||||||||||||||||||
| Part Number | Amps. | Rail to Rail | AVCL | VSUPPLY (Total) (V) |
VSUPPLY (Total) (V) |
ICC per Amp. (µA) |
ICC per Amp. (µA) |
VOS (µV) |
CMRR @DC (dB) |
PSRR @DC (dB) |
Input IBIAS (nA) |
Unity Gain BW (MHz) |
Slew Rate (V/µs) |
en (nV/√Hz) |
in (pA/√Hz) |
Low Pwr. Shutdn | Package/Pins | Price | ||||||||
| min | min | max | typ | max | max | typ | typ | max | typ | typ | See Notes | |||||||||||||||
| MAX4130 | 1 | Input/Output | 1 | 2.7 | 6.5 | 1000 | 1150 | 1500 | 90 | 100 | 150 | 10 | 4 | 22 | 0.4 | No |
|
$0.85 @1k | ||||||||
| MAX4131 | 1 | 600 | 98 |
|
$0.98 @1k | |||||||||||||||||||||
| MAX4132 | 2 | 750 | 94 |
|
$1.40 @1k | |||||||||||||||||||||
| MAX4133 | 2 | 750 | 94 |
|
$1.67 @1k | |||||||||||||||||||||
| MAX4134 | 4 | 1500 | 84 |
|
$2.40 @1k | |||||||||||||||||||||
| 查看所有Operational Amplifiers (145) | ||||||||||||||||||||||||||
| 圖表 |
|

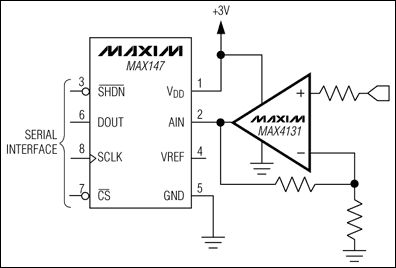

典型工作電路 FROM: Company Name: Aunytor Electronic (HK) Co.,Ltd Contact Person: Charlotte Skype: Aunytor whatsapp：+86 13537622113 Email: carrot@aunytorchips.com |
