描述
LT®1963A 系列是低壓差穩壓器，專為實現快速瞬態響應而優化。這些器件可提供 1.5A 的輸出電流和一個 340mV 的壓差電壓。工作靜態電流為 1mA，并在停機模式中降至 1μA 以下。靜態電流處于良好受控狀態，與采用其他許多穩壓器不同，它在壓降條件下并不上升。除了快速瞬態響應之外，LT1963A 穩壓器還具有非常低的輸出噪聲，因而使其非常適合于敏感的 RF 電源應用。
輸出電壓范圍為 1.21V 至 20V。LT1963A 穩壓器可在采用低至 10μF 的輸出電容器時實現穩定。內部保護電路包括反向電池保護、電流限制、熱限制和反向電流保護。該器件可提供 1.5V、1.8V、2.5V、3.3V 的固定輸出電壓，并可用作一款具 1.21V 基準電壓的可調型器件。LT1963A 穩壓器采用 5 引腳 TO-220、DD、3 引腳 SOT-223、8 引腳 SO 和 16 引腳 TSSOP 封裝。
特點
- 專為實現快速瞬態響應而優化
- 輸出電流：1.5A
- 壓差電壓：340mV
- 低噪聲：40μVRMS (10Hz 至 100kHz)
- 1mA 靜態電流
- 無需保護二極管
- 壓降條件下的受控靜態電流
- 固定輸出電壓：1.5V、1.8V、2.5V、3.3V
- 可調輸出范圍：1.21V 至 20V
- 停機模式中的靜態電流 <1μA
- 采用 10μF 輸出電容器時可穩定
- 采用陶瓷電容器時可穩定
- 反向電池保護
- 無反向電流
- 具熱限制功能

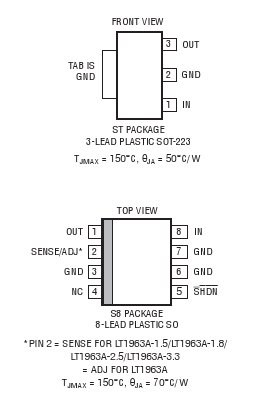

- 5 引線 TO-220、DD、3 引線 SOT-223 和 8 引線 SO 封裝

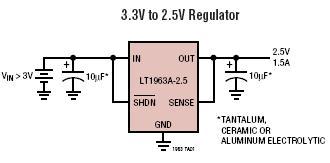

Typical Application
