L6561D013TR

型號	品牌	批號	數量	封裝	備注
L6561D013TR	ST	22+	5000000	SOP-8	Original 全新原裝

L6561D013TRpdf規格書

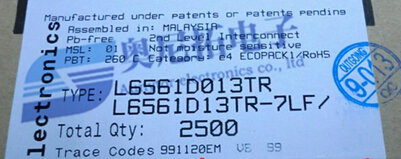

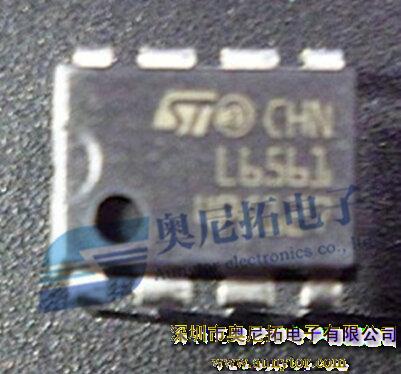

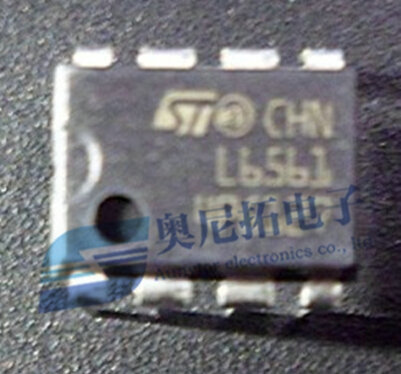

L6561D013TR圖片

L6561D013TR、POWER FACTOR CORRECTOR

1、VERY PRECISE ADJUSTABLE OUTPUT
OVERVOLTAGE PROTECTION
2、MICROPOWERSTART-UPCURRENT (50µATYP.)
3、VERY LOW OPERATING SUPPLY CURRENT(4mA TYP.)
4、INTERNAL START-UP TIMER
5、CURRENT SENSE FILTER ON CHIP
6、DISABLE FUNCTION
7、1% PRECISION (@ Tj =25°C) INTERNAL
8、REFERENCE VOLTAGE
9、TRANSITION MODE OPERATION
10、TOTEM POLE OUTPUT CURRENT:±400mA
11、DIP8/SO8 PACKAGES

L6561D013TR、DESCRIPTION
L6561 is the improved version of the L6560
standard Power Factor Corrector. Fully compat-ible with the standard version, it has a superior
performant multiplier making the device capable
of working in wide input voltage range applica-tions (from 85V to 265V) with an excellent THD.
Furthermore the start up current has been re-duced at few tens ofµA and a disable function
has been implemented on the ZCD pin, guaran-teeing lower current consumption in stand by
mode.

L6561D013TR、Realised in mixed BCD technology, the chip gives
the following benefits:
- micro power start up current
- 1% precision internal reference voltage
(Tj = 25°C)
- Soft Output Over Voltage Protection
- no need for external low pass filter on the current
sense
- verylow operating quiescent current minimises
power dissipation

The totem pole output stage is capable of driving
a Power MOS or IGBT with source and sink cur-rents of +/- 400mA. The device is operating in
transition mode and it is optimised for Electronic
Lamp Ballast application, AC-DC adaptors and
SMPS.

L6561功率因數校正器
1、非常精確可調輸出過壓保護
2、MICROPOWERSTART-UPCURRENT(50µatyp)。
3、非常低的操作電源電流(4馬TYP)。
4、內部啟動計時器
5、當前過濾芯片
6、1%的精度(@ Tj = 25°C)內部參考電壓
7、過渡模式操作
8、圖騰柱輸出電流:±400 ma
9、DIP8 / SO8包

L6561D013TR描述
L6561 L6560標準功率因數校正器的改進版本。完全compat-ible標準版本,
它有一個優越的性能乘數使設備能夠在寬輸入電壓范圍學報(從85 v到265 v)
與一個優秀的可靠性。此外啟動電流已經緩解,那么幾十ofµA和禁用功能
已經實現ZCD銷,guaran-teeing低站在當前消費模式。

L6561D013TR意識到在混合BCD技術、芯片提供以下好處:
- 微電源啟動電流
- 1%精度的內部參考電壓(Tj = 25°C)
- 軟輸出過電壓保護
- 不需要外部低通濾波器對當前意義
- 操作靜態電流最大限度地減少功耗非常低

圖騰柱的輸出階段能夠駕駛功率金屬氧化物半導體或IGBT的源和
匯cur-rents + / - 400 ma。該設備是在轉變經營模式,
優化電子燈鎮流器應用程序,交直流兩用適配器和smp。
