Features
VCC Operation at 3 V and 4.3 V
- 1.8-V Compatible Control-Pin Inputs
- IOFF Supports Partial Power-Down Mode Operation
- ron = 10
Typical
- Cio(ON) = 6 pF Typical
- Low Power Consumption (1 µA Maximum)
- ESD Performance Tested Per JESD 22
- 6000-V Human-Body Model
(A114-B, Class II) - 1000-V Charged-Device Model (C101)
- 250-V Machine Model (A115-A)
- 6000-V Human-Body Model
- Wide -3-dB Bandwidth = 1220 MHz Typical
- Packaged in 8-Pin TQFN (1.5 mm × 1.5 mm)
- APPLICATIONS
- Routes Signals for USB 1.0, 1.1, and 2.0
DESCRIPTION/ORDERING INFORMATION
The TS3USB31 is a high-bandwidth switch specially designed for the switching of high-speed USB 2.0 signals in handset and consumer applications, such as cell phones, digital cameras, and notebooks with hubs or controllers with limited USB I/Os. The wide bandwidth (750 MHz) of this switch allows signals to pass with minimum edge and phase distortion. The switch is bidirectional and offers little or no attenuation of the high-speed signals at the outputs. It is designed for low bit-to-bit skew and high channel-to-channel noise isolation, and is compatible with various standards, such as high-speed USB 2.0 (480 Mbps).

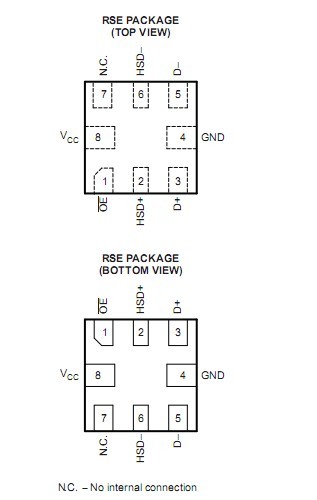

Package
