SN74LVTH244ADWR with a three-state output 3.3V ABT Octal Buffers / Driver

Features

• Support Mixed-Mode Signal Operation (5-V Input and Output Voltages With 3.3-V V_CC)
• Typical V_OLP (Output Ground Bounce)
     <0.8 V at V_CC = 3.3 V, T_A = 25¡ãC
• Support Unregulated Battery Operation Down to 2.7 V
• I_off and Power-Up 3-State Support Hot Insertion
• Bus Hold on Data Inputs Eliminates the Need for External Pullup/Pulldown Resistors
• Latch-Up Performance Exceeds 500 mA Per JESD 17
• ESD Protection Exceeds JESD 22
  • 2000-V Human-Body Model (A114-A)
  • 200-V Machine Model (A115-A)

DESCRIPTION

These octal buffers and line drivers are designed specifically for low-voltage (3.3-V) V_CC operation, but with the capability to provide a TTL interface to a 5-V system environment.

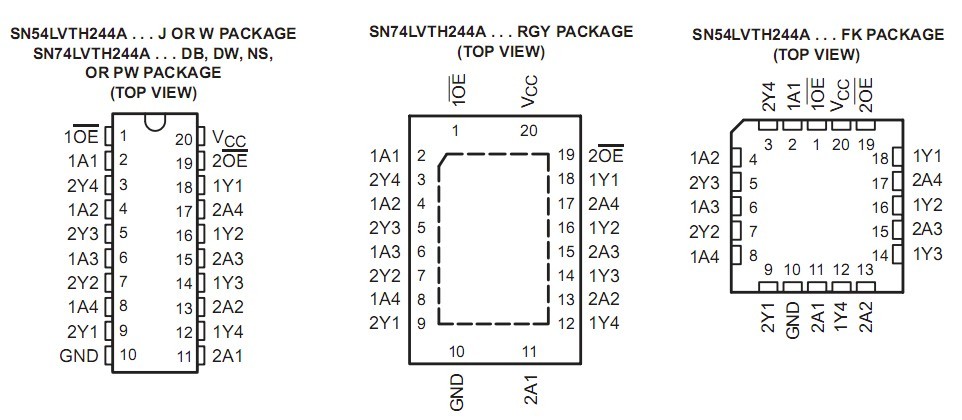

The ¡¯LVTH244A devices are organized as two 4-bit line drivers with separate output-enable (OE)\ inputs. When OE\ is low, the devices pass data from the A inputs to the Y outputs. When OE\ is high, the outputs are in the high-impedance state.

To ensure the high-impedance state during power up or power down, OE\ should be tied to V_CC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver.

Active bus-hold circuitry is provided to hold unused or floating data inputs at a valid logic level.

View All Description in Datasheet

Packaging

Æ÷¼þ	»·±£¼Æ»®*	Ǧ/º¸ÇòÍ¿²ã	MSL µÈ¼¶/»ØÁ÷º¸·å	ÏêϸÐÅÏ¢	ÏêϸÐÅÏ¢
SN74LVTH244ADB	Green (RoHS & no Sb/Br)	CU NIPDAU	Level-1-260C-UNLIM	²é¿´	²é¿´
SN74LVTH244ADBE4	Green (RoHS & no Sb/Br)	CU NIPDAU	Level-1-260C-UNLIM	²é¿´	²é¿´
SN74LVTH244ADBG4	Green (RoHS & no Sb/Br)	CU NIPDAU	Level-1-260C-UNLIM	²é¿´	²é¿´
SN74LVTH244ADBR	Green (RoHS & no Sb/Br)	CU NIPDAU	Level-1-260C-UNLIM	²é¿´	²é¿´
SN74LVTH244ADBRE4	Green (RoHS & no Sb/Br)	CU NIPDAU	Level-1-260C-UNLIM	²é¿´	²é¿´
SN74LVTH244ADBRG4	Green (RoHS & no Sb/Br)	CU NIPDAU	Level-1-260C-UNLIM	²é¿´	²é¿´
SN74LVTH244ADW	Green (RoHS & no Sb/Br)	CU NIPDAU	Level-1-260C-UNLIM	²é¿´	²é¿´
SN74LVTH244ADWE4	Green (RoHS & no Sb/Br)	CU NIPDAU	Level-1-260C-UNLIM	²é¿´	²é¿´
SN74LVTH244ADWG4	Green (RoHS & no Sb/Br)	CU NIPDAU	Level-1-260C-UNLIM	²é¿´	²é¿´
SN74LVTH244ADWR	Green (RoHS & no Sb/Br)	CU NIPDAU	Level-1-260C-UNLIM	²é¿´	²é¿´
SN74LVTH244ADWRE4	Green (RoHS & no Sb/Br)	CU NIPDAU	Level-1-260C-UNLIM	²é¿´	²é¿´
SN74LVTH244ADWRG4	Green (RoHS & no Sb/Br)	CU NIPDAU	Level-1-260C-UNLIM	²é¿´	²é¿´
SN74LVTH244AGQNR	TBD	SNPB	Level-1-240C-UNLIM	²é¿´	²é¿´
SN74LVTH244ANSR	Green (RoHS & no Sb/Br)	CU NIPDAU	Level-1-260C-UNLIM	²é¿´	²é¿´
SN74LVTH244ANSRG4	Green (RoHS & no Sb/Br)	CU NIPDAU	Level-1-260C-UNLIM	²é¿´	²é¿´
SN74LVTH244APW	Green (RoHS & no Sb/Br)	CU NIPDAU	Level-1-260C-UNLIM	²é¿´	²é¿´
SN74LVTH244APWE4	Green (RoHS & no Sb/Br)	CU NIPDAU	Level-1-260C-UNLIM	²é¿´	²é¿´
SN74LVTH244APWG4	Green (RoHS & no Sb/Br)	CU NIPDAU	Level-1-260C-UNLIM	²é¿´	²é¿´
SN74LVTH244APWR	Green (RoHS & no Sb/Br)	CU NIPDAU	Level-1-260C-UNLIM	²é¿´	²é¿´
SN74LVTH244APWRE4	Green (RoHS & no Sb/Br)	CU NIPDAU	Level-1-260C-UNLIM	²é¿´	²é¿´
SN74LVTH244APWRG4	Green (RoHS & no Sb/Br)	CU NIPDAU	Level-1-260C-UNLIM	²é¿´	²é¿´
SN74LVTH244ARGYR	Green (RoHS & no Sb/Br)	CU NIPDAU	Level-2-260C-1 YEAR	²é¿´	²é¿´
SN74LVTH244ARGYRG4	Green (RoHS & no Sb/Br)	CU NIPDAU	Level-2-260C-1 YEAR	²é¿´	²é¿´
SN74LVTH244AZQNR	Green (RoHS & no Sb/Br)	SNAGCU	Level-1-260C-UNLIM	²é¿´	²é¿´
