LTC4151 - High Voltage I2C Current and Voltage Monitor

LTC4151 - High Voltage I2C Current and Voltage Monitor

Features

¡¤                     Wide Operating Voltage Range: 7V to 80V

¡¤                     12-Bit Resolution for Both Current and Voltages

¡¤                     I²C Interface

¡¤                     Additional ADC Input Monitors an External Voltage Continuous Scan and Snapshot Modes

¡¤                     Shutdown Mode (LTC4151) Reduces Quiescent Current to 120¦ÌA

¡¤                     Split SDA for Opto-isolation (LTC4151-1/LTC4151-2)

¡¤                     Available in 10-Lead MSOP, 10-Lead 3mm ¡Á 3mm DFN and 16-Lead SO Packages

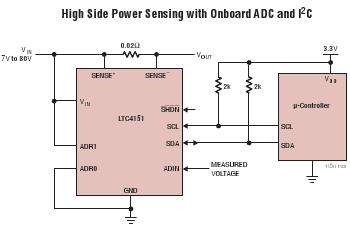

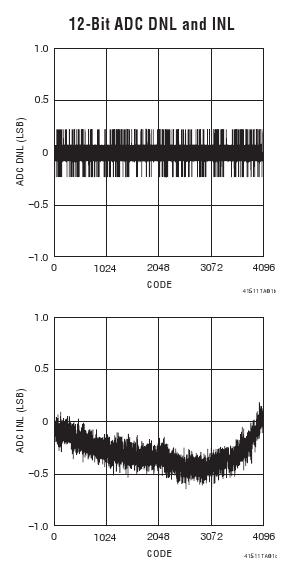

Typical Application

Description

The LTC4151 is a high side power monitor that operates over a wide voltage range of 7V to 80V. In default operation mode, the onboard 12-bit ADC continuously measures high side current, input voltage and an external voltage. Data is reported through the I²C interface when polled by a host. The LTC4151 can also perform on-demand measurement in a snapshot mode. The LTC4151 features a dedicated shutdown pin to reduce power consumption. The LTC4151-1/LTC4151-2 feature split I2C data pins to drive opto-isolators. The data out on the LTC4151-1 is inverted while that on the LTC4151-2 is not.

Packaging

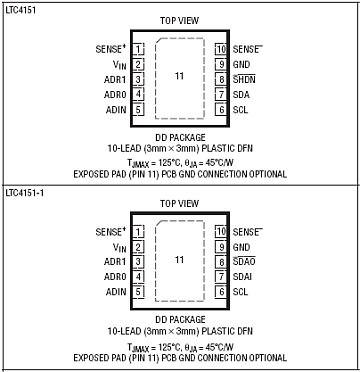

MS-10, DFN-10
