LT3570 -
Features
· 2.5V to 36V Input Voltage Range
· Programmable Switching Frequency
· from 500kHz to 2.1MHz
· Synchronizable Up to 2.75MHz
· VOUT(MIN): 0.8V
· Independent Soft-Start for Each Converter
· Separate VIN Supplies for Each Converter
· Duty Cycle Range: 0% to 90% at 1MHz

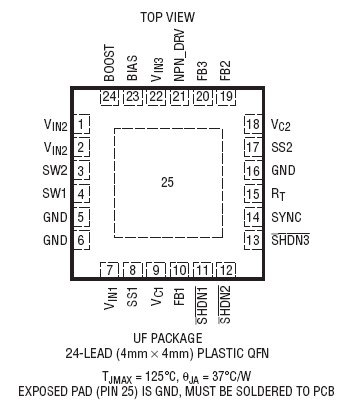

· Available in 24-Lead (

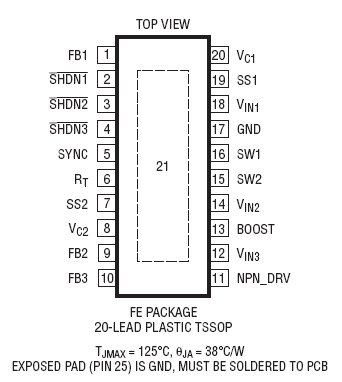

· 20-Lead TSSOP Packages

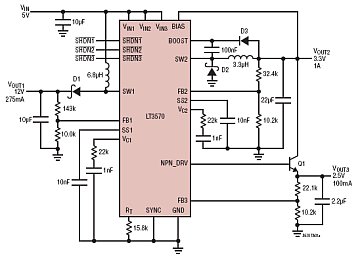

Typical Application
Description
The LT3570 is a buck and boost converter with internal power switches and LDO controller. Each converter is designed with a
The LT3570 features a programmable soft-start function that limits the feedback voltage during start-up helping prevent overshoot and limiting inrush current. The LDO controller is capable of delivering up to 10mA of base current to an external NPN transistor
Packaging
QFN-24, TSSOP-20
