Features

¡¤                     Program or Pin-Strap Six Output Ranges

¡¤                     0V to 5V, 0V to 10V, ¨C2.5V to 7.5V, ¡À2.5V, ¡À5V, ¡À10V

¡¤                     Maximum 16-Bit INL Error: ¡À1 LSB over Temperature

¡¤                     Guaranteed Monotonic over Temperature

¡¤                     Low Glitch Impulse 0.26nV•s (3V), 1.25nV•s (5V)

¡¤                     Serial Readback of All On-Chip Registers

¡¤                     Low 1¦ÌA Maximum Supply Current

¡¤                     2.7V to 5.5V Single-Supply Operation

¡¤                     16-Bit Settling Time: 2¦Ìs

¡¤                     Voltage-Controlled Offset and Gain Trims

¡¤                     Clear and Power-On-Reset to 0V Regardless of Output Range

¡¤                     52-Pin 7mm ¡Á 8mm QFN Package

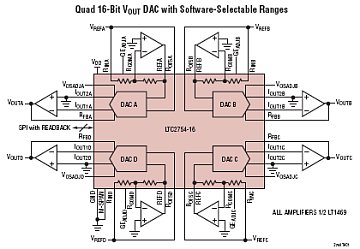

Typical Application

Description

The LTC2754 is a family of quad 12- and 16-bit multiplying serial-input, current-output digital-to-analog converters. They operate from a single 3V to 5V supply and are guaranteed monotonic over temperature. The LTC2754A-16 provides full 16-bit performance (¡À1LSB INL and DNL, max) over temperature without any adjustments. These SoftSpan DACs offer six output ranges (up to ¡À10V) that can be programmed through the 3-wire SPI serial interface, or pinstrapped for operation in a single range.

The content of any on-chip register (including DAC output- range settings) can be verified in just one instruction cycle; and if you change any register, that register will be automatically read back during the next instruction cycle.

Voltage-controlled offset and gain adjustments are also provided; and the power-on reset circuit and CLR pin both reset the DAC outputs to 0V regardless of output range.

Packaging

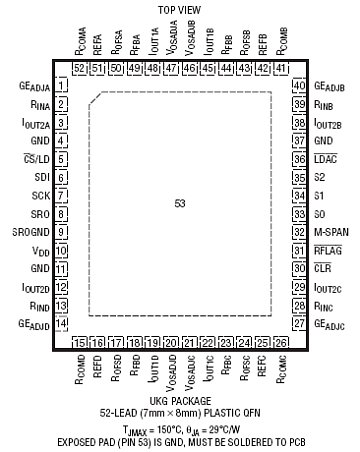

QFN-52
