DESCRIPTION
The LTC6078/LTC6079 are dual/quad, low offset, low
noise operational amplifiers with low power consumption
and rail-to-rail input/output swing.
Input offset voltage is trimmed to less than 25µV and the
CMOS inputs draw less than 50pA of bias current. The low
offset drift, excellent CMRR, and high voltage gain make
it a good choice for precision signal conditioning.
Each amplifier draws only 54µA current on a 3V supply. The
micropower, rail-to-rail operation of the LTC6078/LTC6079
is well suited for portable instruments and single supply
applications.
The LTC6078/LTC6079 are specified on power supply
voltages of 3V and 5V from –40 to 125°C. The dual am-
plifier LTC6078 is available in 8-lead MSOP and 10-lead
DFN packages. The quad amplifier LTC6079 is available
in 16-lead SSOP and DFN packages.
FEATURES
Maximum Offset Voltage of 25µV (25°C)
Maximum Offset Drift of 0.7µV/°C
Maximum Input Bias:
1pA (25°C)
50pA (≤85°C)
Micropower: 54µA per Amp
95dB CMRR (Min)
100dB PSRR (Min)
Input Noise Voltage Density: 16nV/√Hz
Rail-to-Rail Inputs and Outputs
2.7V to 5.5V Operation Voltage
LTC6078 Available in 8-Lead MSOP and 10-Lead DFN
Packages; LTC6079 Available in 16-Lead SSOP and
DFN Packages
APPLICATIONS
Photodiode Amplfier
High Impedance Sensor Amplfier
Microvolt Accuracy Threshold Detection
Instrumentation Amplfiers
Battery Powered Applications

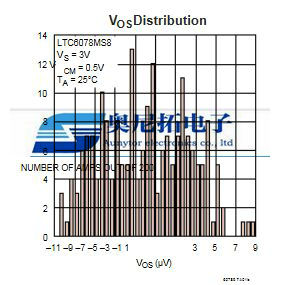

TYPICAL APPLICATION

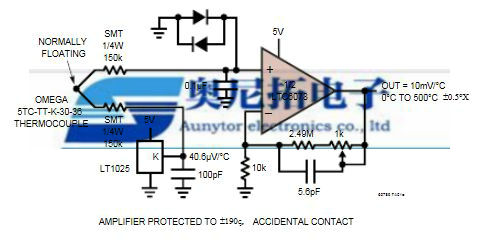

Thermocouple Signal Conditioner

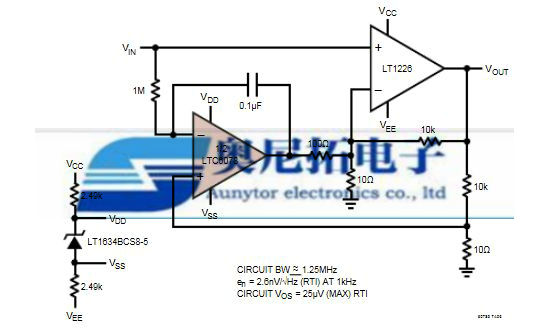

DC Accurate Composite Amplifier, Gain of 1000

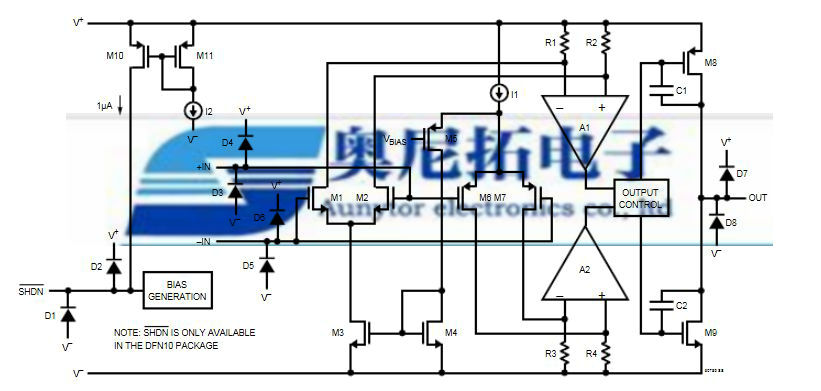

Simplified Schematic of the Amplifier
Part No Marking
LTC6078CDD LBBB
LTC6078IDD LBBB
LTC6078ACMS8 LTAJZ
LTC6078CMS8 LTAJZ
LTC6078AIMS8 LTAJZ
LTC60278IMS8 LTAJZ
LTC6078AHMS8 LTAJZ
LTC6078HMS8 LTAJZ
LTC6079CDHC 6079
LTC609IDHC 6079
LTC6079CGN 6079
LTC6079IGN 6079I
LTC6079HGN 6079H
