AMC2244DMT DUAL Triple QUAD LOW-POWER 60MHz UNITY-GAIN STABLE OP AMPLIFIERS

The AMC2244/AMC2344/AMC2444 are dual,
triple and quad versions of the high speed, low power,
and low cost monolithic operational amplifiers. These
devices consume only 7mA of supply current per
amplifier to achieve the performance of unity gain stable,
270V/µs slew rate and 60 MHz gain- bandwidth product.
The power supply operating range is from ¡À18V
down to as low as ¡À2V. For single-supply operation, the
AMC2244/AMC2344/AMC2444 operate from 36V
down to 2.5V.
The AMC2244/AMC2344/AMC2444 also features
an extremely wide output voltage swing. The maximum
output voltage swing is ¡À13.8V with VS= ¡À15V and R
L=1000Ω. Furthermore, for single-supply operation at +5V,
output voltage swing is from 0.2V to 3.9V with RL=500Ω.

FEATURES

60MHz Gain-Bandwidth Product.
Low Supply Current, 7mA (per Amplifier) at
VS=¡À15V.
Wide supply range, ¡À2V to ¡À18V dual-supply, 2.5V
to 36V single-supply.
High slew rate = 270V/µs.
Fast Settling = 80 ns to 0.1 % for a 10V Step.
Low Differential Gain = 0.04% at A
V=+2, RL=150Ω.
Low Differential Phase = 0.15º at A
V=+2, RL=150Ω.
Stable with unlimited capacitive load.
Wide output voltage swing, ¡À13.8V with V
S=¡À15V,
RL=1000Ω, and 3.9V/0.2V with VS=+5V, R
L=500Ω.
Low cost, enhanced pin-pin Compatible to the
AD827/AD828/AD8073, EL2244/EL2444C &
TSH72/TSH74/TSH112/TSH114 LT1229/LT1230.

APPLICATIONS

High Speed Sample-and-Hold
High Speed Signal Processing
ADC/DAC Buffer
Video Amplifiers
Active Filters/Integrators
Pulse/RF Amplifiers
STB(Set-Top Box)

PACKAGE PIN OUT

SIMPLIFIED SCHEMATIC (PER AMPLIFIER)

8-Pin Plastic DIP

14-Pin Plastic DIP

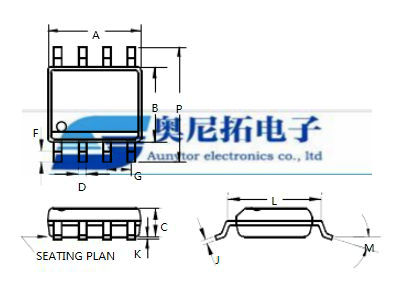

8-Pin Plastic S.O.I.C.

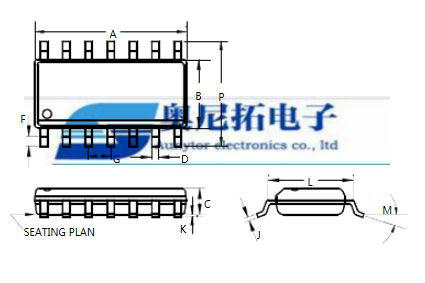

14-Pin Plastic S.O.I.C

Part                                      Temp(0¡æ£©       Packing/Pin

AMC2244MF                          0¡æ-70¡æ            DIP-8

AMC2244DMF                        0¡æ-70¡æ            SOIC-8

AMC2344N/AMC2444N          0¡æ-70¡æ            DIP-14

AMC2344DM/AMC2444DM     0¡æ-70¡æ            SOIC-14

Note£º1.All surface-mount packages are available in Tape & Reel.
Append the letter ¡°T¡± to part number (i.e. AMC2244DMT¡¢AMC2344DMT or
AMC2444DMT).
2.The letter ¡°F¡± is marked for Lead Free process as AMC2444NF¡¢AMC2444DMF(Lead Free).
