Description
The LSM303DLHC is a system-in-package
featuring a 3D digital linear acceleration sensor
and a 3D digital magnetic sensor.
LSM303DLHC has linear acceleration full-scales
of ±2g / ±4g / ±8g / ±16g and a magnetic field full-
scale of ±1.3 / ±1.9 / ±2.5 / ±4.0 / ±4.7 / ±5.6 /
±8.1 gauss. All full-scales available are fully
selectable by the user.
LSM303DLHC includes an I 2 C serial bus interface
that supports standard and fast mode 100 kHz
and 400kHz. The system can be configured to
generate interrupt signals by inertial wake-
up/free-fall events as well as by the position of the
device itself. Thresholds and timing of interrupt
generators are programmable by the end user on
the fly. Magnetic and accelerometer parts can be
enabled or put into power-down mode separately.
The LSM303DLHC is available in a plastic land
grid array package (LGA) and is guaranteed to
operate over an extended temperature range from
-40 °C to +85 °C.
Features
3 magnetic field channels and 3 acceleration
channels
From ±1.3 to ±8.1 gauss magnetic field full-
scale
±2g/±4g/±8g/±16g selectable full-scale
16 bit data output
I 2 C serial interface
Analog supply voltage 2.16 V to 3.6 V
Power-down mode/ low-power mode
2 independent programmable interrupt
generators for free-fall and motion detection
Embedded temperature sensor
Embedded FIFO
6D/4D orientation detection
ECOPACK ® RoHS and “Green” compliant
Applications
Compensated compass
Map rotation
Position detection
Motion-activated functions
Free-fall detection
Click/double click recognition
Pedometer
Intelligent power-saving for handheld devices
Display orientation
Gaming and virtual reality input devices
Impact recognition and logging
Vibration monitoring and compensation

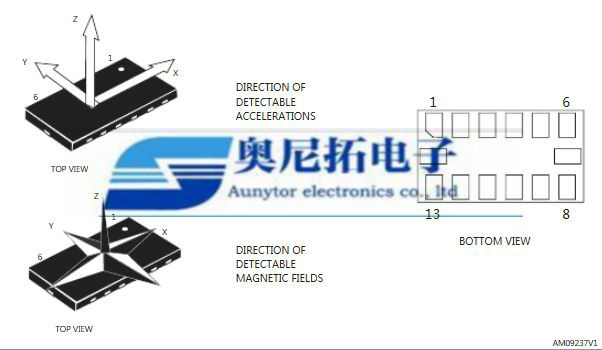

Pin connection

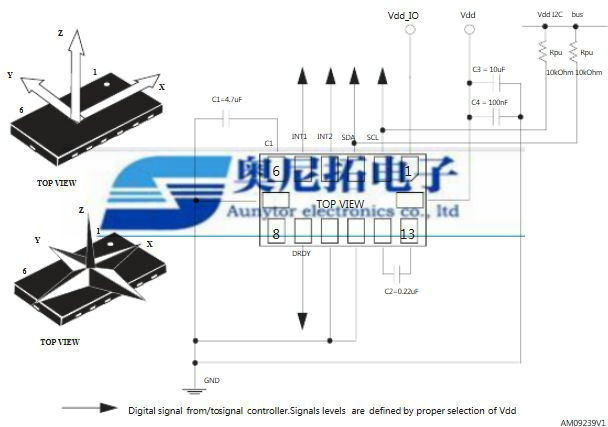

LSM303DLHC electrical connection

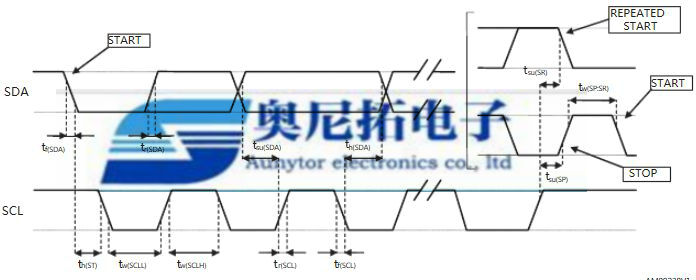

I 2 C slave timing diagram
P/N Temp（0℃) Package Packing
LSM303DLHC -40 to +85 LGA-14 490pcs/Tray
LSM303DLHCTR -40 to +85 LGA-14 5000pcs/Reel
