Description
The MIS2DH is an ultra-low-power highperformance
three-axis linear accelerometer with
digital I2C/SPI serial interface standard output.
The MIS2DH has user-selectable full scales of
±2g/±4g/±8g/±16g and is capable of measuring
accelerations with output data rates from 1 Hz to
5.3 kHz.
The MIS2DH is a device that has been conceived
for medical and healthcare applications whenever
the sensor itself is not used as a life-sustaining
component.
The device may be configured to generate
interrupt signals by two independent inertial
wake-up/free-fall events as well as by the position
of the device itself.
The self-test capability allows the user to check
the functionality of the sensor in the final
application.
The MIS2DH is available in a small thin plastic
land grid array package (LGA) and is guaranteed
to operate over an extended temperature range
from -40℃to +85℃.
Features
Wide supply voltage, 1.71 V to 3.6 V
Independent IOs supply (1.8 V) and supply
voltage compatible
Ultra-low power consumption down to 2 μA
±2g/±4g/8g/16g selectable full scales
I 2 C/SPI digital output interface
3 operating modes: low-power, normal, high-
resolution mode
2 independent programmable interrupt
generators for free-fall and motion detection
6D/4D orientation detection
Motion detection & free-fall detection
“Sleep-to-wake” and “return-to-sleep” functions
Embedded FIFO
Embedded self-test
Embedded temperature sensor
ECOPACK®, RoHS and “Green” compliant
Applications
Activity monitoring and posture detection in
medical and healthcare applications, including
body-implantable products
Remote patient monitoring and man-down
alerts
Diagnostic and treatment positioning
equipment
General motion-activated functions in the
medical domain

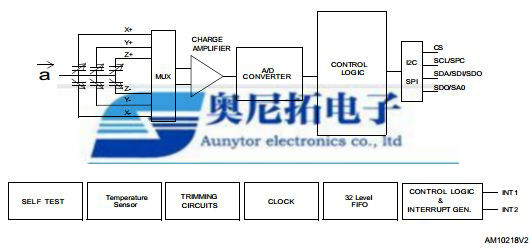

Block diagram
Pin connections
SPI slave timing diagram
I 2 C slave timing diagram

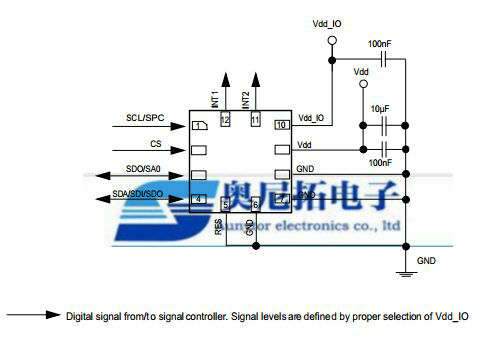

MIS2DH electrical connections
P/N Temp（0℃） Package Packing
MIS2DH -40 to +85 LGA-12 2000pcs/Tray
MIS2DHTR -40 to +85 LGA-12 2000pcs/Reel
