Description
The LIS2DS12 is an ultra-low-power highperformance
three-axis linear accelerometer
belonging to the ¡°pico¡± family which leverages on
the robust and mature manufacturing processes
already used for the production of micromachined
accelerometers.
The LIS2DS12 has user-selectable full scales of
¡À2g/¡À4g/¡À8g/¡À16g and is capable of measuring
accelerations with output data rates from 1 Hz to
6400 Hz.
The LIS2DS12 has an integrated 256-level firstin,
first-out (FIFO) buffer allowing the user to store
data in order to limit intervention by the host
processor.
The embedded self-test capability allows the user
to check the functioning of the sensor in the final
application.
The LIS2DS12 has a dedicated internal engine
architecture in order to process internally motion
and acceleration detection including free-fall,
wakeup, single and double-tap detection, activityinactivity,
portrait and landscape detection, step
counter and step detection along with significant
motion detection.
The LIS2DS12 is available in a small thin plastic
land grid array package (LGA) and it is
guaranteed to operate over an extended
temperature range from -40¡æ to +85¡æ.
Features
Supply voltage, 1.62 V to 1.98 V
Independent IOs supply (1.8 V) and supply
voltage compatible
Ultra-low power consumption
¡À2g/¡À4g/¡À8g/¡À16g full scale
High-speed I 2 C/SPI digital output interface
Low noise
16-bit data output
Embedded temperature sensor
Self-test
256-level FIFO
10000 g high shock survivability
ECOPACK®, RoHS and ¡°Green¡± compliant
Applications
Motion-activated functions and user interfaces
Gesture recognition and gaming
Pedometer, step detector and step counters
Display orientation
Sensor hub function
Tilt function
Tap/double-tap recognition
6D/4D orientation
Free-fall detection
Smartpower saving for handheld devices
Impact recognition and logging

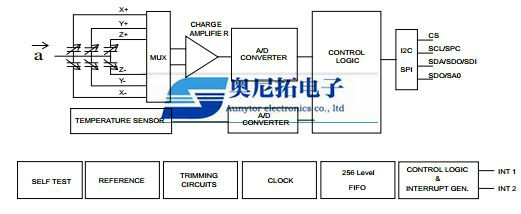

Block diagram

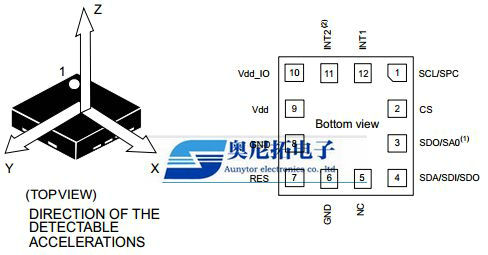

Pin connections
1. When the sensor hub is used, this pin is the I2C data master line (MSDA).
2. When sensor hub is used, this pin is the I2C clock master line (MSCL).

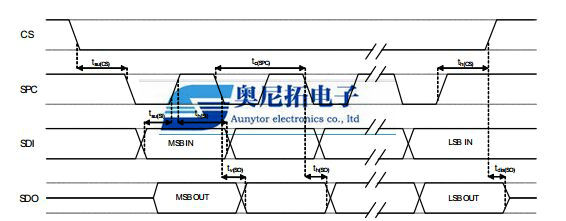

SPI slave timing diagram

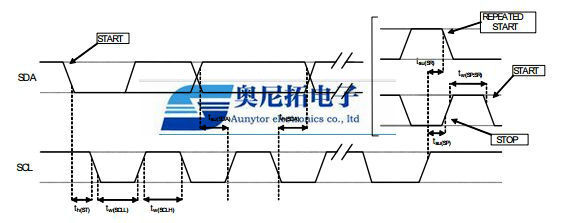

I 2 C slave timing diagram

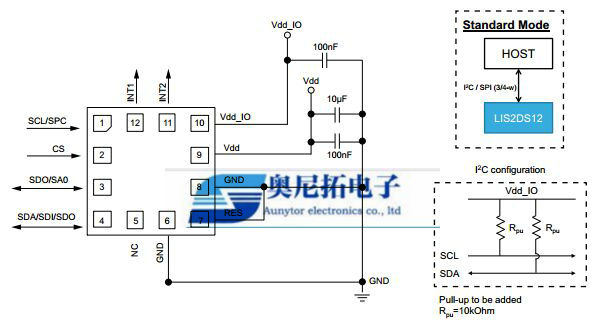

LIS2DS12 electrical connections in standard configuration (top view)
LIS2DS12 electrical connections in sensor hub configuration (top view)
P/N Temp£¨0¡æ£© Package Packing
LIS2DS12 -40 to +85 LGA-12 1/Tray
LIS2DS12TR -40 to +85 LGA-12 8000pcs/Reel
