LTC6912IGN-1 Dual Programmable Gain Amplifiers with Serial Digital Interface

DESCRIPTION

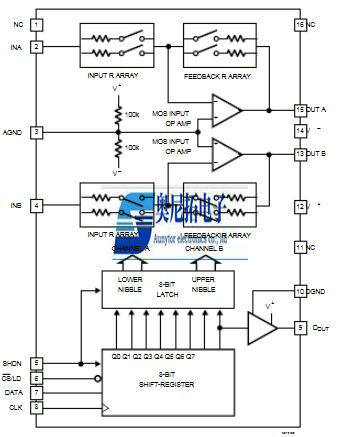

The LTC6912 is a family of dual channel, low noise,
digitally programmable gain amplifiers (PGA) that are
easy to use and occupy very little PC board space. The
gains for both channels are independently programmable
using a 3-wire SPI interface to select voltage gains of 0, 1,
2, 5, 10, 20, 50, and 100V/V (LTC6912-1 ); and 0, 1, 2, 4,
8, 16, 32, and 64V/V (LTC6912-2). All gains are inverting.
The LTC6912 family consists of 2 matched amplifiers with
rail-to-rail outputs. When operated with unity gain, they

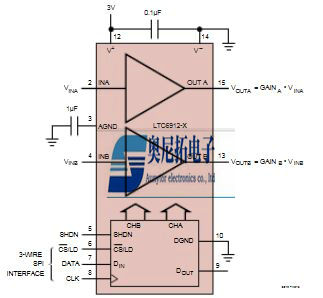

will also process rail-to-rail input signals. A half-supply
reference generated internally at the AGND pin supports
single power supply applications. Operating from single
or split supplies from 2.7V to 10.5V total, the LTC6912-X
family is offered in tiny SSOP and DFN-12 Packages.

FEATURES

2 Channels with Independent Gain Control
LTC6912-1: (0, 1, 2, 5, 10, 20, 50, and 100V/V)
LTC6912-2: (0, 1, 2, 4, 8, 16, 32, and 64V/V)
Offset Voltage = 2mV Max (�C40�� to 85��)
Channel-to-Channel Gain Matching of 0.1dB Max
3-Wire SPI Interface
Extended Gain-Bandwidth at High Gains
Wired-OR Outputs Possible (2:1 Analog MUX
Function)
Low Power Hardware Shutdown (GN-16 Only,
2µA Max at 2.7V)
Rail-to-Rail Input Range
Rail-to-Rail Output Swing
Single or Dual Supply: 2.7V to 10.5V Total
Input Noise: 12.6nV/��Hz
Total System Dynamic Range to 115dB
16-Pin GN (SSOP) or 12-Pin DFN Package Options
