Description
The YB1230 is a series of low-noise, low
dropout (LDO) linear regulators with 2.0%
output voltage accuracy. The YB1230
regulators achieve a low 500mV dropout at
600mA load current of 3.1V output and are
available in voltages ranging from 1.8V to
3.1V with 0.1V per step (custom voltage is
considerable at request).
The YB1230 regulators are optimized to
work with low-ESR and low cost ceramic
capacitors, reducing the amount of board
space critical in hand-held devices. The
YB1230 requires only 2.2μF output
capacitor for stability with any load and
consumes less than 1μA in shutdown mode.
Built-in thermal shutdown and short-circuit
protect offer secure protection against fault
operation. The YB1230 regulators are
available in SOT-23/SOT-25/SOT-89 packages.
Features
2.0% Accuracy Output Voltage
Output Voltage range 1.8V~3.1V
Low-Noise Low-Drop-Out
Stable with 2.2μF Ceramic Capacitor
for Any Load
Typical Output Current : 600mA
Low Quiescent Current : ~90μA
500mV Dropout at 600mA Load (3.1V)
Only Need Input and Output Capacitors
Power Saving Shutdown Mode (<1μA)
Thermal Protection Shutdown
Built-In Internal Soft-Start
Output Short-circuit Current Limit
Protection
Green package (RoHS) available
Applications
PDA, Palmtops and Notebook
Computers
DSC, Handset Camera Modules
PCMCIA Cards, PC Cameras
USB Based Portable Devices (MP3, PMP)
GSM/GPRS/3G RF Transceiver
Modules
Wireless LANs
Bluetooth Portable Radios
Typical Application Circuitry

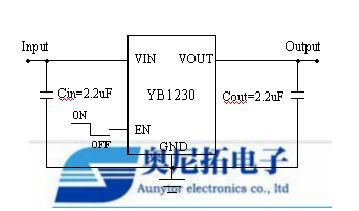

SOT-25 applivation circuit

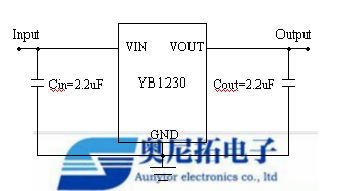

SOT-89,SOT-23 applivation circuit
Pin Configuration
SOT-89
SOT-89R
SOT-23
SOT-25
