DESCRIPTION
Annular PNPN devices designed for high volume
consumer applications such as relay and lamp
drivers, small motor controls, gate drivers for
larger thyristors,and sensing and detection circuits.
Supplied in an inexpensive plastic TO−92/TO-226AA package
which is readily adaptable for use in automatic insertion
equipment.
Features
Sensitive Gate Trigger Current −200mA Maximum
Low Reverse and Forward Blocking Current −50mA Maximum,
TC = 110℃
Low Holding Current − 5mA Maximum
Passivated Surface for Reliability and Uniformity
Device Marking: Device Type,e.g.,2N5060,Date Code
Pb−Free Packages are Available*

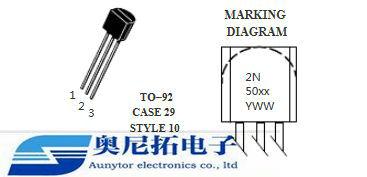

PIN CONFIGURATION
P/N Package
2N5060 TO−92
2N5060RLRA TO−92
2N5060RLRAG TO−92
2N5060RLRM TO−92
2N5061 TO−92
2N5061G TO−92
2N5061RLRA TO−92
2N5061RLRAG TO−92
