General Description
The MIC7211 and MIC7221 are micropower comparators
featuring rail-to-rail input performance in Micrel’s
IttyBitty ® SOT-23-5 package.The MIC7211/21 is ideal
for systems where small size is a critical consideration.
The MIC7211/21 is optimized for single supply operation from
2.2V to 10V power supplies.
The MIC7211 features a conventional push-pull output while
the MIC7221 has an open-drain output for mixed-voltage
applications with an external pull-up resistor.
The MIC7211/21 benefits small battery-operated portable
electronic devices where small size and the ability to place
the comparator close to the signal source are primary design
concerns.
Features
Small footprint SOT-23-5 package
Guaranteed performance at 2.2V,2.7V,5V,and 10V
7µA typical supply current at 5V
<5µs response time at 5V
Push-pull output (MIC7211)
Open-drain output (MIC7221)
Input voltage range may exceed supply voltage by 0.3V
>100mA typical sink or source
Applications
Battery-powered products
Notebook computers and PDAs
PCMCIA cards
Cellular and other wireless communication devices
Alarm and security circuits
Direct sensor interface

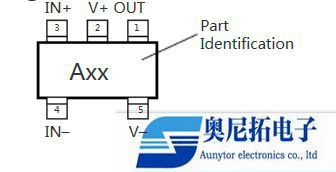

Pin Configuration

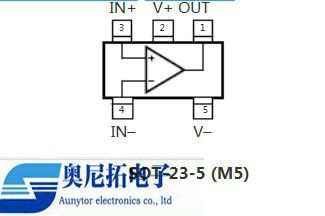

Functional Configuration
P/N Temp（0℃） Package
MIC7211BM5 –40℃ to +85℃ SOT-23-5
MIC7221BM5 –40℃ to +85℃ SOT-23-5
MIC7211YM5 –40℃ to +85℃ SOT-23-5
MIC7221YM5 –40℃ to +85℃ SOT-23-5
