DESCRIPTION
The X60003x-50 FGA™ voltage references are very
high precision analog voltage references fabricated in
Intersil’s proprietary Floating Gate Analog technology,
which achieves superior levels of performance when
compared to conventional band gap, buried zener,or
X FET™ technologies.
FGA™ voltage references feature very high initial
accuracy,very low temperature coefficient,excellent
long term stability,low noise and excellent line and
load regulation,at the lowest power consumption
currently available.These voltage references enable
advanced applications for precision industrial &
portable systems operating at significantly higher
accuracy and lower power levels than can be achieved
with conventional technologies.
FEATURES
Output Voltage: 5.000V
Absolute Initial Accuracy Options:
±1.0mV,±2.5mV,& ±5.0mV
Ultra Low Power Supply Current: 500nA
Low Temperature Coefficient Options:
10 & 20ppm/℃
10 mA Source & Sink Current Capability
10 ppm/1000hrs Long Term Stability
Very Low Dropout Voltage: 100 mV @ no load
Supply Voltage Range: 5.1V to 9.0V
5kV ESD (Human Body Model)
Standard Package: 3-lead SOT-23
Temp Range: -40℃ to +85℃
APPLICATIONS
High Resolution A/Ds & D/As
Digital Meters
Calibration Systems
V-F Converters
Precision Current Sources
Precision Regulators
Precision Oscillators
Battery Management Systems
Smart sensors
Strain Gage Bridges
Threshold Detectors
Servo Systems

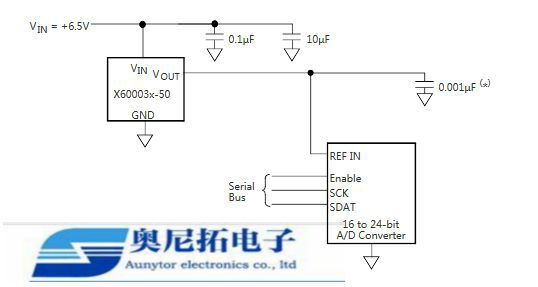

TYPICAL APPLICATION
PACKAGE DIAGRAM
P/N Package
X60003BIG3-50 SOT23
X60003CIG3-50 SOT23
X60003DIG3-50 SOT23
