LTC2236 - 10-Bit, 25Msps Low Noise 3V ADCs

Packaging

QFN-32

Features

Sample Rate: 65Msps/40Msps/25Msps
Single 3V Supply (2.7V to 3.4V)
Low Power: 205mW/120mW/75mW
61.8dB SNR
85dB SFDR
No Missing Codes
Flexible Input: 1V_P-P to 2V_P-P Range
575MHz Full Power Bandwidth S/H
Clock Duty Cycle Stabilizer
Shutdown and Nap Modes
Pin Compatible Family:
125Msps: LTC2251 (10-Bit), LTC2253 (12-Bit)
105Msps: LTC2250 (10-Bit), LTC2252 (12-Bit)
80Msps: LTC2239 (10-Bit), LTC2229 (12-Bit)
65Msps: LTC2238 (10-Bit), LTC2228 (12-Bit)
40Msps: LTC2237 (10-Bit), LTC2227 (12-Bit)
25Msps: LTC2236 (10-Bit), LTC2226 (12-Bit)

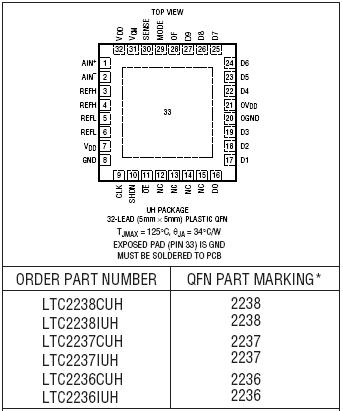

32-Pin (5mm �� 5mm) QFN Package

Description

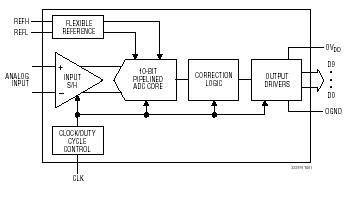

The LTC2238/LTC2237/LTC2236 are 10-bit 65Msps/40Msps/25Msps, low power 3V A/D converters designed for digitizing high frequency, wide dynamic range signals. The LTC2238/LTC2237/LTC2236 are perfect for demanding imaging and communications applications with AC performance that includes 61.8dB SNR and 85dB SFDR for signals at the Nyquist frequency.

DC specs include ��0.1LSB INL (typ), ��0.05LSB DNL (typ) and ��0.5LSB INL, ��0.5LSB DNL over temperature. The transition noise is a low 0.07LSBRMS.

A single 3V supply allows low power operation. A separate output supply allows the outputs to drive 0.5V to 3.3V logic.

A single-ended CLK input controls converter operation. An optional clock duty cycle stabilizer allows high performance at full speed for a wide range of clock duty cycles.

Applications

Wireless and Wired Broadband Communication
Imaging Systems
Ultrasound
Spectral Analysis
Portable Instrumentation

Package Variations and Pricing

Part Number	Package	Pins	Temp	Price (1-99)	Price (1k)^*	RoHS Data
LTC2236CUH	QFN	32	C	$4.67	$3.50	View
LTC2236CUH#PBF	QFN	32	C	$4.67	$3.50	View
LTC2236CUH#TR	QFN	32	C		$3.60	View
LTC2236CUH#TRPBF	QFN	32	C		$3.60	View
LTC2236IUH	QFN	32	I	$5.60	$4.20	View
LTC2236IUH#PBF	QFN	32	I	$5.60	$4.20	View
LTC2236IUH#TR	QFN	32	I		$4.30	View
LTC2236IUH#TRPBF	QFN	32	I		$4.30	View
