| Description | ||||||
The MAX4906EF features two single-pole/double-throw (SPDT) switches. The device is fully specified to operate from a single +2.7V to +3.6V power supply and is protected against a +5.5V short to all analog inputs (COM_, NC_, NO_). This feature makes the MAX4906EF fully compliant with the USB 2.0 specification of +5.5V fault protection. The device features a low threshold voltage and a +1.4V VIH, permitting them to be used with low-voltage logic. The device features a active-low QP input that when driven high, turns the charge pump off and sets the device in standby mode. When the device is in standby mode, the quiescent supply current is reduced to 3µA (max) and the switches remain operable. The MAX4906EF is available in a space-saving, 2mm x 2mm µDFN package and operates over a -40°C to +85°C temperature range. |
||||||
Download
E-Mail
| Key Features | Applications/Uses | |||||||||||||||||||||||||
|
|
| Key Specifications: Switches and Multiplexers (Low Voltage) | ||||||||||||||||||||||||||||||
| Part Number | Protocol | Functions | Config. | Channels | Normal Position | VSUPPLY (Single) (V) |
VSUPPLY (Single) (V) |
RON (Ω) |
BW (MHz) |
tON (ns) |
tOFF (ns) |
COFF (pF) |
Features | Off. Iso. (dB) |
Crosstalk (dB) |
ΔRON (Ω) |
RFLAT(ON) (Ω) |
ESD Protect. (±kV) |
Redundancy Switch | Package/Pins | Smallest Available Pckg. (mm2) |
Price | ||||||||
| min | max | max | min | max | max | max | max | max w/pins | See Notes | |||||||||||||||||||||
| MAX4906EF | USB | Switch | SPDT | 2 | Open/Closed | 3 | 3.6 | 8 | 1000 | 60 | 30 | 5 | USB Certified | 60 | 59 | 1.5 | 1 | 15 | No |
|
4 | $1.45 @1k | ||||||||
| See All Switches and Multiplexers (Low Voltage) (160) | ||||||||||||||||||||||||||||||
| Diagram |

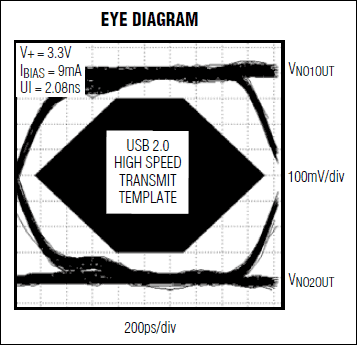

 Typical Operating Characteristics |
Supplier
MAX4906EF Original and new High-/Full-Speed USB 2.0 Switches with High ESD
