| 型號 | 溫度 | 封裝 | 備注 |
| MAX603CPA MAX603CSA MAX603C/D MAX603EPA MAX603ESA MAX603MJA MAX604CPA MAX604CSA MAX604C/D MAX604EPA MAX604ESA MAX604MJA |
0°C to +70°C 0°C to +70°C 0°C to +70°C -40°C to +85°C -40°C to +85°C -55°C to +125°C 0°C to +70°C 0°C to +70°C 0°C to +70°C -40°C to +85°C -40°C to +85°C -55°C to +125°C |
8 Plastic DIP 8 SO Dice 8 Plastic DIP 8 SO 8 CERDIP 8 Plastic DIP 8 SO Dice* 8 Plastic DIP 8 SO 8 CERDIP |
業內尺寸最小的500mA LDO，SO8封裝可耗散1.8W的功率 |
PDF和WORD文檔下載
MAX603, MAX604
MAX603, MAX604
| 關鍵特性 | 應用/使用 | |||||||||||||||
|
|
| Key Specifications: Linear Regulators | |||||||||||||||||||||||||||||
| Part Number | Polarity | Regulators | VIN (V) |
VIN (V) |
Preset VOUT (V) |
Adj. VOUT (V) |
Adj. VOUT (V) |
VDROPOUT @Rated ILOAD (V) |
Rated ILOAD (mA) |
VOUT Acc. (±%) |
ICC (µA) |
ICC (µA) |
Internal Pass Transistor | Shutdn/ Enable | Low Noise | Low Batt./ Pwr. Fail Out | POK/RST Output | Watchdog | Reverse Batt. Protect. | EV Kit | Package/Pins | Smallest Available Pckg. (mm2) |
Oper. Temp. (°C) |
Price | |||||
| min | max | min | max | typ | typ | max | max w/pins | See Notes | |||||||||||||||||||||
| MAX603 | Positive | 1 | 2.7 | 11.5 | 5 | 1.3 | 11.5 | 0.32 | 500 | 3 | 25 | 50 | Yes | No | No | No | No | No | No | No |
|
31 | 0 to +70 | $1.68 @1k | |||||
| MAX604 | 3.3 | 0.6 | 5 | 15 | 35 | Yes | Yes |
|
|
$1.68 @1k | |||||||||||||||||||
| See All Linear Regulators (153) | |||||||||||||||||||||||||||||

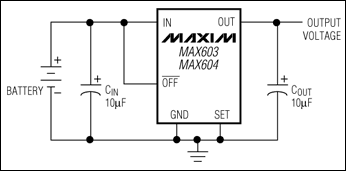

| 圖表 |
|
