MAX13085EASA 品牌：MAXIM
MAX13085EASA 封裝：SOP8
MAX13085EASA 批號：22+
MAX13085EASA 備注：原裝正品現貨、±15kV ESD保護、失效保護、熱插拔、RS-485/RS-422收發器
PDF和WORD文檔下載
MAX13085EASA
MAX13085EASA
| 關鍵特性 | 應用/使用 | |||||||||||||||||
|
|
| Key Specifications: RS-422/485 Line Driver/Receivers | ||||||||||||||||||||||||
| Part Number | Tx/Rx | Duplex | VSUPPLY (V) |
ICC (mA) |
Data Rate (kbps) |
ESD Protect. (±kV) |
Tx EN | Rx EN | ICC (Shutdn.) (µA) |
Rx/Tx on Bus | Rx Failsafe w/ Inputs | Features | Slew Rate Limiting | Package/Pins | Smallest Available Pckg. (mm2) |
Oper. Temp. (°C) |
Price | |||||||
| typ | min | typ | max w/pins | See Notes | ||||||||||||||||||||
| MAX13080E | 1Tx + 1Rx | Full | 5 | 1.2 | 250 | 15 | Yes | Yes | 2.8 | 256 | Open or Shorted |
|
Yes |
|
54 |
|
$1.54 @1k | |||||||
| MAX13081E | Full | 1.2 | 250 | No | No | - | Hot-Swap Support | Yes |
|
31 | $1.31 @1k | |||||||||||||
| MAX13082E | Half | 1.2 | 250 | Yes | Yes | 2.8 |
|
Yes |
|
31 | $1.26 @1k | |||||||||||||
| MAX13083E | Full | 2 | 500 | Yes | Yes | 2.8 |
|
Yes |
|
54 | $1.56 @1k | |||||||||||||
| MAX13084E | Full | 1.2 | 500 | No | No | - | Hot-Swap Support | Yes |
|
31 | $1.40 @1k | |||||||||||||
| MAX13085E | Half | 1.2 | 500 | Yes | Yes | 2.8 |
|
Yes |
|
31 | $1.26 @1k | |||||||||||||
| MAX13086E | Full | 1.2 | 16000 | Yes | Yes | 2.8 |
|
No |
|
54 | $1.63 @1k | |||||||||||||
| MAX13087E | Full | 1.2 | 16000 | No | No | - |
|
No |
|
31 | $1.31 @1k | |||||||||||||
| MAX13088E | Half | 1.2 | 16000 | Yes | Yes | 2.8 |
|
No |
|
31 | $1.26 @1k | |||||||||||||
| MAX13089E | Half/Full | 1.2 | 16000 | Yes | Yes | 2.8 |
|
Yes |
|
54 | $1.58 @1k | |||||||||||||
| See All RS-422/485 Line Driver/Receivers (159) | ||||||||||||||||||||||||
| 圖表 |

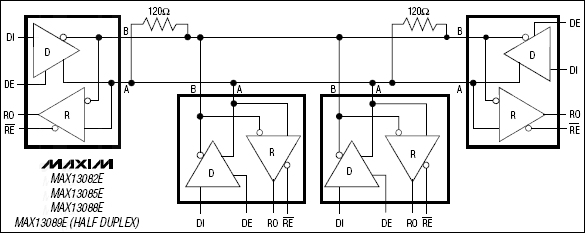

 典型半雙工RS-485網絡 |
