| 概述 | ||||||
The MAX850-MAX852 offer both preset (-4.1V) and adjustable (-0.5V to -9.0V) output voltages. The MAX853 uses an external positive control voltage to set the negative output voltage. Input voltage range for all four devices is 4.5V to 10V. Output current is 5mA. An internal linear regulator reduces the output voltage ripple to 2mVP-P. With a well-filtered control voltage (VCTRL), the MAX853 achieves typical output ripple of less than 1mVP-P. Supply current is 3mA max, and shutdown current is less than 1µA max over temperature (5µA max for MAX851). |
||||||
下載
現備有評估板： MAX850EVKIT
| 關鍵特性 | 應用/使用 | |||||||||||||||
|
|
| Key Specifications: Charge Pumps | |||||||||||||||||||
| Part Number | Topology | VIN (V) |
VIN (V) |
ICC (mA) |
Unadj. VOUT (V) |
Adj. VOUT (V) |
Adj. VOUT (V) |
IOUT (A) |
Oper. Freq. (kHz) |
Features | Package/Pins | Smallest Available Pckg. (mm2) |
Oper. Temp. (°C) |
Price | |||||
| min | max | max | min | max | typ | max w/pins | See Notes | ||||||||||||
| MAX850 |
|
4.5 | 10 | 3 | -4.1 | -VIN-0.6 | -0.5 | 0.005 | 100 | Shutdown |
|
31 |
|
$1.65 @1k | |||||
| MAX851 | -4.1 |
|
$1.65 @1k | ||||||||||||||||
| MAX853 | -9 |
|
$1.65 @1k | ||||||||||||||||
| 查看所有Charge Pumps (48) | |||||||||||||||||||
| 圖表 |

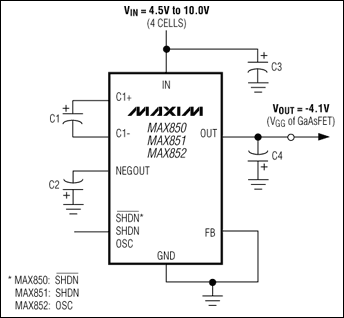

 典型工作電路 |
