STM32F103VBT6與Flash性能,基于arm的32位單片機,USB,七個16位定時器,可以兩個adc和九個通信接口
| 型號 | 品牌 | 批號 | 數量 | 封裝 | 備注 |
| STM32F103VBT6 | ST | 22+ | 5000000 | LQFP100 | Original 全新原裝 |

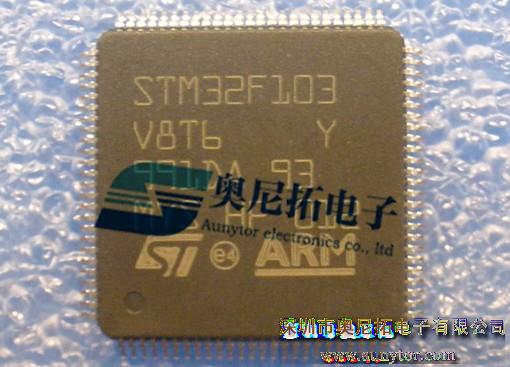

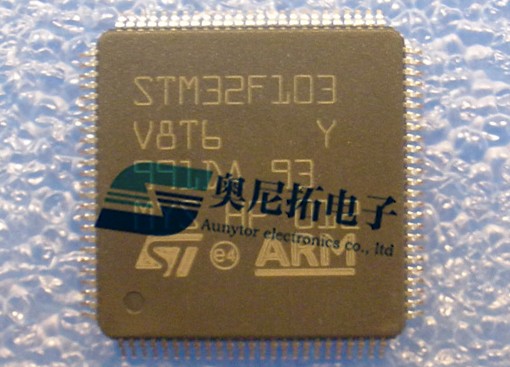

STM32F103VBT6
pdf規格書
STM32F103VBT6Description
The STM32F103xx performance line family incorporates the high-performance ARM
Cortex-M3 32-bit RISC core operating at a 72 MHz frequency, high-speed embedded
memories (Flash memory up to 128Kbytes and SRAM up to 20 Kbytes), and an extensive
range of enhanced I/Os and peripherals connected to two APB buses. All devices offer two
12-bit ADCs, three general purpose 16-bit timers plus one PWM timer, as well as standard
and advanced communication interfaces: up to two I2Cs and SPIs, three USARTs, an USB
and a CAN.
The STM32F103xx performance line family operates in the −40 to +105 °C temperature
range, from a 2.0 to 3.6 V power supply. A comprehensive set of power-saving mode allows
to design low-power applications.
The complete STM32F103xx performance line family includes devices in 4 different
package types: from 48 pins to 100 pins. Depending on the device chosen, different sets of
peripherals are included, the description below gives an overview of the complete range of
peripherals proposed in this family.
These features make the STM32F103xx performance line microcontroller family suitable for
a wide range of applications:
● Motor drive and application control
● Medical and handheld equipment
● PC peripherals gaming and GPS platforms
● Industrial applications: PLC, inverters, printers, and scanners
● Alarm systems, Video intercom, and HVAC
STM32F103VBT6Features
■ Core: ARM 32-bit Cortex™-M3 CPU
– 72 MHz, 90 DMIPS with 1.25 DMIPS/MHz
– Single-cycle multiplication and hardware
division
– Nested interrupt controller with 43
maskable interrupt channels
– Interrupt processing (down to 6 CPU
cycles) with tail chaining
■ Memories
– 32-to-128 Kbytes of Flash memory
– 6-to-20 Kbytes of SRAM
■ Clock, reset and supply management
– 2.0 to 3.6 V application supply and I/Os
– POR, PDR, and programmable voltage
detector (PVD)
– 4-to-16 MHz quartz oscillator
– Internal 8 MHz factory-trimmed RC
– Internal 32 kHz RC
– PLL for CPU clock
– Dedicated 32 kHz oscillator for RTC with
calibration
■ Low power
– Sleep, Stop and Standby modes
– VBAT supply for RTC and backup registers
■ 2 x 12-bit, 1 µs A/D converters (16-channel)
– Conversion range: 0 to 3.6 V
– Dual-sample and hold capability
– Synchronizable with advanced control timer
– Temperature sensor
■ DMA
– 7-channel DMA controller
– Peripherals supported: timers, ADC, SPIs,
I
2Cs and USARTs
■ Debug mode
– Serial wire debug (SWD) & JTAG interfaces
■ Up to 80 fast I/O ports
– 32/49/80 5 V-tolerant I/Os
– All mappable on 16 external interrupt
vectors
– Atomic read/modify/write operations
■ Up to 7 timers
– Up to three 16-bit timers, each with up to 4
IC/OC/PWM or pulse counter
– 16-bit, 6-channel advanced control timer:
up to 6 channels for PWM output
Dead time generation and emergency
stop
– 2 x 16-bit watchdog timers (Independent
and Window)
– SysTick timer: a 24-bit downcounter
■ Up to 9 communication interfaces
– Up to 2 x I2C interfaces (SMBus/PMBus)
– Up to 3 USARTs (ISO 7816 interface, LIN,
IrDA capability, modem control)
– Up to 2 SPIs (18 Mbit/s)
– CAN interface (2.0B Active)
– USB 2.0 full speed interface
STM32F103VBT6產品介紹
STM32F103xx性能行家庭包含了高性能ARM Cortex-M3 32位RISC核心操作在一個72 MHz的頻率,高速嵌入式記憶(閃存128 kb和SRAM 20 kb),和一個廣泛范圍的增強的I / o和外圍設備連接到兩個APB總線。所有設備提供兩個12位adc,三個通用的16位定時器加一PWM計時器,以及標準和先進的通信接口:兩個i2c和spi,三,,一個USB接口和一個可以。
STM32F103xx性能行家庭經營−40 + 105°C的溫度范圍內,從2.0到3.6 V電源。一組全面的節電模式允許設計低功耗應用程序。
完整的STM32F103xx性能行家庭包括設備在4個不同的包類型:從48針100針。取決于所選擇的設備,不同的外圍設備,包含下面的描述概述外圍設備提出了完整的家庭
這些特性使得STM32F103xx性能行單片機家庭適用于廣泛的應用:
●電機驅動和應用程序控制
●醫療和手持設備
●游戲PC外圍設備和GPS平臺
●工業應用:PLC、變頻器、打印機和掃描儀
●報警系統、視頻對講,暖通空調
STM32F103VBT6特性
■核心:手臂32位皮層™m3 CPU
—單循環乘法和硬件部門
—43嵌套中斷控制器可屏蔽的中斷通道
—中斷處理(到6 CPU周期)和尾鏈
■記憶
—32 - 128 kb的閃存
—6-to-20 k字節的存儲器
■時鐘、復位和供應管理
—2.0到3.6 V應用程序供應和I / o
—窮,PDR、可編程電壓檢測器(PVD)
MHz石英振蕩器
—內部8 MHz factory-trimmed RC
—32千赫RC內部
—鎖相環CPU時鐘
—專用32 kHz振蕩器RTC校準
■低功率
—睡眠,停止和待機模式
—RTC - VBAT供應和備份寄存器
■2 x 12位,1µs A / D轉換器(16通道)
—轉換范圍:0到3.6 V
—Dual-sample和容納能力
—Synchronizable先進控制計時器
—溫度傳感器
■直接存儲器存取
—7通道DMA控制器
—外設支持:計時器,ADC,spi,我2 cs
■調試模式
—串行線調試(門限&通過JTAG接口
■80快速I / O端口
—32/49/80 5 V-tolerant I/Os
—所有可用圖表示的外部中斷向量
—原子讀/修改/寫操作
■7計時器
—3個16位定時器,每4個IC / OC / PWM脈沖計數器
—16位,6通道先進控制計時器:6 PWM輸出渠道死時間生成和緊急停車
—2 x 16位看門狗定時器(獨立和窗口)
—SysTick計時器:24位downcounter
■9通信接口
—2 x I2C接口(SMBus / PMBus)
—(ISO 7816接口,林,紅外線功能,現代控制)
—2 spi(18 Mbit / s)
—可以接口(2.0 b活躍)
—USB 2.0全速接口
