| 型號 | 品牌 | 批號 | 數量 | 封裝 | 備注 |
| STM32F207VGT6 | ST | 22+ | 5000000 | LQFP | Original 全新原裝 |

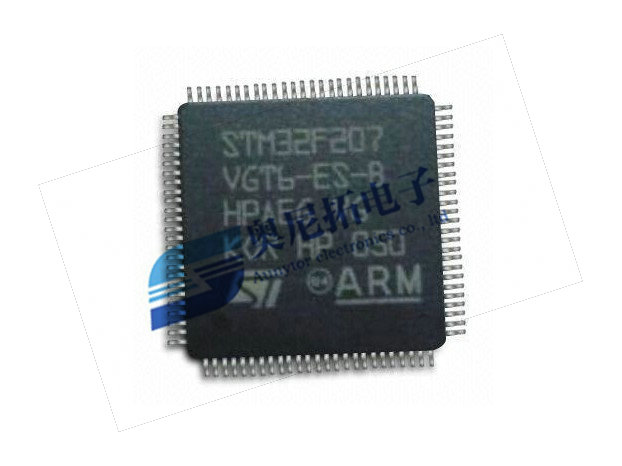

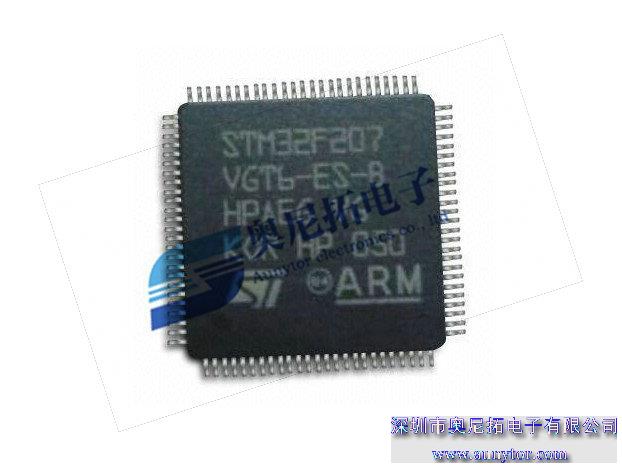

STM32F207VGT6
pdf規格書
STM32F207VGT6Features
■ Core: ARM 32-bit Cortex™-M3 CPU (120 MHz
max) with Adaptive real-time accelerator (ART
Accelerator™) allowing 0-wait state execution
performance from Flash memory, MPU,
150 DMIPS/1.25 DMIPS/MHz (Dhrystone 2.1)
■ Memories
– Up to 1 Mbyte of Flash memory
– 512 bytes of OTP memory
– Up to 128 + 4 Kbytes of SRAM
– Flexible static memory controller that
supports Compact Flash, SRAM, PSRAM,
NOR and NAND memories
– LCD parallel interface, 8080/6800 modes
■ CRC calculation unit
■ Clock, reset and supply management
– From 1.8 to 3.6 V application supply+I/Os
– POR, PDR, PVD and BOR
– 4 to 26 MHz crystal oscillator
– Internal 16 MHz factory-trimmed RC
– 32 kHz oscillator for RTC with calibration
– Internal 32 kHz RC with calibration
■ Low power
– Sleep, Stop and Standby modes
– V BAT supply for RTC, 20 × 32 bit backup
registers, and optional 4 KB backup SRAM
■ 3 × 12-bit, 0.5 µs ADCs with up to 24 channels
and up to 6 MSPS in triple interleaved mode
■ 2 × 12-bit D/A converters
■ General-purpose DMA: 16-stream controller
with centralized FIFOs and burst support
■ 96-bit unique ID
■ Up to 17 timers
– Up to twelve 16-bit and two 32-bit timers,
up to 120 MHz, each with up to 4
IC/OC/PWM or pulse counter and
quadrature (incremental) encoder input
■ Debug mode: Serial wire debug (SWD), JTAG,
and Cortex-M3 Embedded Trace Macrocell™
■ Up to 140 I/O ports with interrupt capability:
– Up to 136 fast I/Os up to 60 MHz
– Up to 138 5 V-tolerant I/Os
■ Up to 15 communication interfaces
– Up to 3 × I 2 C interfaces (SMBus/PMBus)
– Up to 4 USARTs and 2 UARTs (7.5 Mbit/s,
ISO 7816 interface, LIN, IrDA, modem
control)
– Up to 3 SPIs (30 Mbit/s), 2 with muxed I 2 S
to achieve audio class accuracy via audio
PLL or external PLL
– 2 × CAN interfaces (2.0B Active)
– SDIO interface
■ Advanced connectivity
– USB 2.0 full-speed device/host/OTG
controller with on-chip PHY
– USB 2.0 high-speed/full-speed
device/host/OTG controller with dedicated
DMA, on-chip full-speed PHY and ULPI
– 10/100 Ethernet MAC with dedicated DMA:
supports IEEE 1588v2 hardware, MII/RMII
■ 8- to 14-bit parallel camera interface
(48 Mbyte/s max)
■ Analog true random number generator
STM32F207VGT6特性
■核心:手臂32位皮層™m3 CPU(120 MHz max)與自適應實時加速器(藝術加速器™)允許0-wait狀態執行性能從閃存,單片機150 DMIPS / 1.25 DMIPS / MHz(Dhrystone 2.1)
■記憶
—1兆字節的閃存
—512字節的OTP存儲器
—128 + 4 k字節的存儲器支持Flash緊湊,SRAM,PSRAM,也和NAND記憶靈活的靜態存儲控制器
—8080/6800模式液晶并行接口
■CRC計算單位時鐘
■復位和供應管理
—從1.8到3.6 V應用程序供應+ I / Os
—窮,PDR、PVD和BOR
—4 - 26 MHz晶體振蕩器內部16兆赫factory-trimmed RC
—32 kHz振蕩器與校準RTC
—內部32 kHz RC校準
■低功率
—睡眠,停止和待機模式
V蝙蝠供應RTC,20×32位備份寄存器,以及可選的4 KB備份存儲器
■3×12位,0.5µs adc 24通道和6成員在三重交錯模式
■2×12位D / A轉換器
■通用DMA:16-stream控制器和集中的fifo和破裂支持
■96位惟一的ID
■17計時器
十二16位和兩個32位計時器,120 MHz,每4個IC / OC / PWM脈沖計數器和正交增量編碼器的輸入
■調試模式:串行線調試門限),通過JTAG,Cortex-M3嵌入式跟蹤宏單元™
■140 I / O端口中斷功能:
136快速I / Os 60 MHz
138 5 V-tolerant I / Os
■15通信接口
3×2 C接口(SMBus / PMBus)
4,和2 uart(7.5 Mbit / s,ISO 7816接口,林、紅外線、調制解調器控制)
3 spi(30 Mbit / s),2 mux我2 s實現音頻類精度通過音頻鎖相環或外部鎖相環
2×接口(2.0 b活躍)
SDIO接口
■先進連接
—USB 2.0全速設備/主機/ OTG控制器片上試
—USB 2.0設備/主機/高速/全速OTG與專用DMA控制器芯片上全速PHY和ULPI
—與專用DMA - 10/100以太網MAC:支持IEEE 1588 v2硬件、信息產業部/ RMII
■8 - 14位并行相機接口(48兆字節/ s馬克斯)
■模擬真正的隨機數發生器
