STM32F101CBT6

型號	品牌	批號	數量	封裝	備注
STM32F101CBT6	ST	22+	5000000	LQFP48	Original 全新原裝

STM32F101CBT6 pdf規格書

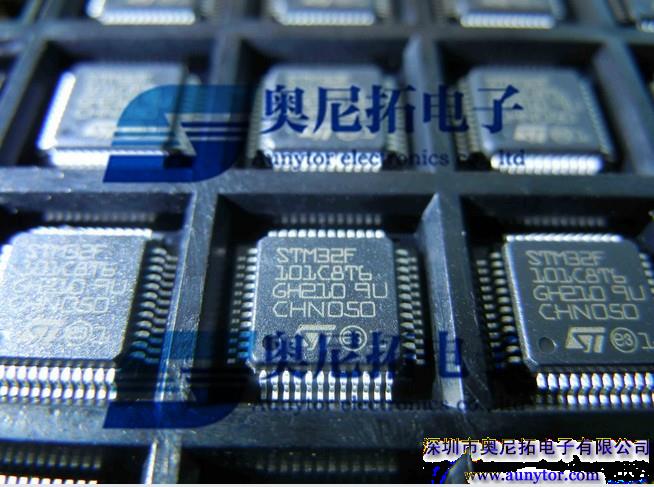

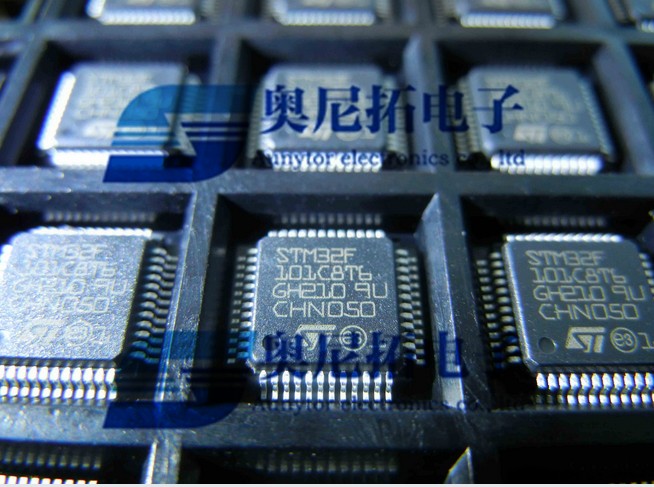

STM32F101CBT6圖片

STM32F101CBT6Medium-density access line, ARM-based 32-bit MCU with 64 or
128 KB Flash, 6 timers, ADC and 7 communication interfaces

STM32F101CBT6Features
■ Core: ARM 32-bit Cortex™-M3
CPU
– 36 MHz maximum frequency,
1.25 DMIPS/MHz (Dhrystone 2.1)
performance at 0 wait state memory
access
– Single-cycle multiplication and hardware
division
■ Memories
– 64 to 128 Kbytes of Flash memory
– 10 to 16 Kbytes of SRAM
■ Clock, reset and supply management
– 2.0 to 3.6 V application supply and I/Os
– POR, PDR and programmable voltage
detector (PVD)
– 4-to-16 MHz crystal oscillator
– Internal 8 MHz factory-trimmed RC
– Internal 40 kHz RC
– PLL for CPU clock
– 32 kHz oscillator for RTC with calibration
■ Low power
– Sleep, Stop and Standby modes
– VBAT supply for RTC and backup registers
■ Debug mode
– Serial wire debug (SWD) and JTAG
interfaces
■ DMA
– 7-channel DMA controller
– Peripherals supported: timers, ADC, SPIs,
I
2Cs and USARTs
■ 1 × 12-bit, 1 µs A/D converter (up to 16
channels)
– Conversion range: 0 to 3.6 V
– Temperature sensor
■ Up to 80 fast I/O ports
– 26/37/51/80 I/Os, all mappable on 16
external interrupt vectors and almost all
5 V-tolerant
■ Six timers
– Three 16-bit timers, each with up to 4
IC/OC/PWM or pulse counter
– 2 watchdog timers (Independent and
Window)
– SysTick timer: 24-bit downcounter
■ Up to 7 communication interfaces
– Up to 2 x I2C interfaces (SMBus/PMBus)
– Up to 3 USARTs (ISO 7816 interface, LIN,
IrDA capability, modem control)
– Up to 2 SPIs (18 Mbit/s)
■ CRC calculation unit, 96-bit unique ID
■ ECOPACK® packages

STM32F101CBT6Description

The STM32F101xB and STM32F101x8 medium-density access line family incorporates the
high-performance ARM Cortex™-M3 32-bit RISC core operating at a 36 MHz frequency,
high-speed embedded memories (Flash memory up to 128 Kbytes and SRAM up to 16
Kbytes), and an extensive range of enhanced peripherals and I/Os connected to two APB
buses. All devices offer standard communication interfaces (two I2Cs, two SPIs, and up to
three USARTs), one 12-bit ADC and three general-purpose 16-bit timers.
The STM32F101xx medium-density access line family operates in the –40 to +85 °C
temperature range, from a 2.0 to 3.6 V power supply. A comprehensive set of power-saving
mode allows the design of low-power applications.
The STM32F101xx medium-density access line family includes devices in four different
packages ranging from 36 pins to 100 pins. Depending on the device chosen, different sets
of peripherals are included, the description below gives an overview of the complete range
of peripherals proposed in this family.
These features make the STM32F101xx medium-density access line microcontroller family
suitable for a wide range of applications:
● Application control and user interface
● Medical and handheld equipment
● PC peripherals, gaming and GPS platforms
● Industrial applications: PLC, inverters, printers, and scanners
● Alarm systems, Video intercom, and HVAC

STM32F101CBT6制造接入線路,基于arm的32位單片機與64或128 KB的Flash,6個計時器,ADC和7通信接口

STM32F101CBT6特性
■核心:手臂32位皮層™m3 CPU
- 36 MHz頻率最大,1.25 DMIPS / MHz(Dhrystone 2.1)在0等待狀態內存訪問性能
- 單循環乘法和硬件部門
■記憶
- 64到128 kb的閃存
- 10到16 k字節的存儲器
■時鐘、復位和供應管理
- 2.0到3.6 V應用供應和I / o
- 窮,PDR和可編程電壓檢測器(PVD)
- 日MHz晶體振蕩器內部8 MHz factory-trimmed RC
- 內部40 kHz RC
- CPU時鐘
- 32 kHz振蕩器的鎖相環RTC校準
■低功率
- 睡眠,停止和待機模式
- VBAT供應RTC和備份寄存器
■調試模式
- 串行線調試(門限和通過JTAG接口
■直接存儲器存取
- 7通道DMA控制器
-外設支持:計時器,ADC,spi,我2 cs和,
■1×12位,1µs A / D轉換器(16通道)
- 轉換范圍:0到3.6 V
-溫度傳感器
■80快速I / O端口
- 26/37/51/80 I / Os,所有可用圖表示的外部中斷向量和幾乎所有5 V-tolerant
■6個計時器
三個16位定時器,每個4個IC / OC / PWM脈沖計數器
- 2看門狗定時器(獨立和窗口)
- SysTick計時器:24位downcounter
■7通信接口
- 2 x I2C接口(SMBus / PMBus)
3,(ISO 7816接口,林,紅外線功能,現代控制)
- 2 spi(18 Mbit / s)
■CRC計算單元,96位的惟一ID
■ECOPACK®包

STM32F101CBT6產品描述
STM32F101xB和STM32F101x8制造訪問行家庭包含高性能ARM皮質™m3 32位RISC核心操作以36 MHz的頻率,高速嵌入式記憶(閃存128 kb和SRAM 16 k字節),和一個廣泛范圍的增強的外設和I / o連接到兩個APB總線。所有設備提供標準通信接口(兩個i2c,兩個spi,三,),一個12位ADC和三個通用的16位定時器。

STM32F101xx制造訪問行家庭經營在-40 + 85°C溫度范圍從2.0到3.6 V電源。一組全面的節電模式允許低功耗的設計應用程序。

STM32F101xx制造家庭接入線路包括設備在四個不同的包從36針100針。取決于所選擇的設備,不同的外圍設備,包含下面的描述概述外圍設備提出了完整的家庭。

這些特性使STM32F101xx制造接入線路單片機家庭適用于廣泛的應用:
●醫療應用程序控制和用戶界面
●手持設備
●PC外圍設備,游戲和GPS平臺
●工業應用:PLC、變頻器、打印機、掃描儀
●報警系統、視頻對講,空調
