STM8S207RBT6

型號	品牌	批號	數量	封裝	備注
STM8S207RBT6	ST	22+	5000000	LQFP	Original 全新原裝

STM8S207RBT6 pdf規格書

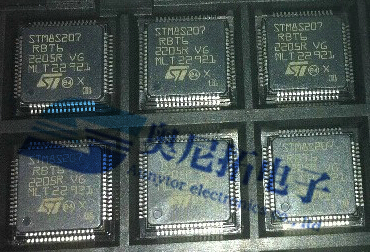

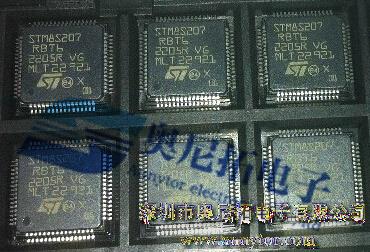

STM8S207RBT6圖片

Performance line, 24 MHz STM8S 8-bit MCU, up to 128 Kbytes Flash,
integrated EEPROM,10-bit ADC, timers, 2 UARTs, SPI, I²C, CAN

STM8S207RBT6Features
■ Core
– Max f CPU : up to 24 MHz, 0 wait states @
f CPU ≤ 16 MHz
– Advanced STM8 core with Harvard
architecture and 3-stage pipeline
– Extended instruction set
– Max 20 MIPS @ 24 MHz
■ Memories
– Program: up to 128 Kbytes Flash; data
retention 20 years at 55 °C after 10 kcycles
– Data: up to 2 Kbytes true data EEPROM;
endurance 300 kcycles
– RAM: up to 6 Kbytes
■ Clock, reset and supply management
– 2.95 to 5.5 V operating voltage
– Flexible clock control:
– Low power crystal resonator oscillator
– External clock input
– Internal, user-trimmable 16 MHz RC
– Internal low power 128 kHz RC
– Clock security system with clock monitor
– Power management:
– Wait, active-halt, & halt low power modes
– Peripheral clocks switched off individually
– Permanently active, low consumption
power-on and power-down reset
■ Interrupt management
– Nested interrupt controller with 32
interrupts
– Up to 37 external interrupts on 6 vectors
■ Timers
– 2x 16-bit general purpose timers, with 2+3
CAPCOM channels (IC, OC or PWM)
– Advanced control timer: 16-bit, 4 CAPCOM
channels, 3 complementary outputs, dead-
time insertion and flexible synchronization
– 8-bit basic timer with 8-bit prescaler
– Auto wakeup timer
– Window watchdog, independent watchdog
■ Communications interfaces
– High speed 1 Mbit/s active beCAN 2.0B
– UART with clock output for synchronous
operation - LIN master mode
– UART with LIN 2.1 compliant, master/slave
modes and automatic resynchronization
– SPI interface up to 10 Mbit/s
– I 2 C interface up to 400 Kbit/s
■ 10-bit ADC with up to 16 channels
■ I/Os
– Up to 68 I/Os on an 80-pin package
including 18 high sink outputs
– Highly robust I/O design, immune against
current injection
– Development support
– Single wire interface module (SWIM) and
debug module (DM)
■ Unique ID
– 96-bit unique key for each device

STM8S207RBT6Description
The STM8S20xxx performance line 8-bit microcontrollers offer from 32 to 128 Kbytes Flash
program memory. They are referred to as high-density devices in the STM8S microcontroller
family Reference Manual (RM0016).
All devices of the STM8S20xxx performance line provide the following benefits:
● Reduced system cost
– Integrated true data EEPROM for up to 300 k write/erase cycles
– High system integration level with internal clock oscillators, watchdog and brown-
out reset.
● Performance and robustness
– 20 MIPS at 24 MHz CPU clock frequency
– Robust I/O, independent watchdogs with separate clock source
– Clock security system
● Short development cycles
– Applications scalability across a common family product architecture with
compatible pinout, memory map and and modular peripherals.
– Full documentation and a wide choice of development tools
● Product longevity
– Advanced core and peripherals made in a state-of-the art technology
– A family of products for applications with 2.95 V to 5.5 V operating supply

性能線、24 MHz STM8S 8位單片機128 kb的Flash,集成eepm,10位ADC,計時器。

STM8S207RBT6特性
■核心
- Max fCPU:24 MHz,0等待狀態@ fCPU≤16兆赫
- 先進STM8核心與哈佛架構和號管道
- 擴展指令集
- Max 20 MIPS @ 24 MHz
■記憶
- 項目:128 kb的Flash;數據保留10 kcycles后20年55°C
- 數據:2 kb的真實數據eepm;300 kcycles耐力
- RAM:6 kb
■時鐘、復位和供應管理
- 2.95到5.5 V操作電壓
- 靈活的時鐘控制:
- 低功率晶體諧振器振蕩器
- 外部時鐘輸入
- 內部user-trimmable 16兆赫RC
- 內部低功率128 kHz RC
- 時鐘和時鐘監控安全系統
■電源管理
- 等待active-halt &停止低功率模式
- 外圍時鐘單獨關掉
- 永久地活躍,低消費上電和斷電復位
■中斷管理
- 與32個中斷嵌套中斷控制器
- 37個外部中斷向量
■計時器
- 2 x 16位通用定時器,2 + 3 CAPCOM渠道(IC,OC或PWM)
- 8位和8位預定標器基本定時器
- 自動喚醒定時器
- 獨立監察機構窗口
■通信接口
-高速1 Mbit / s活躍beCAN 2.0 b
- UART與時鐘輸出同步操作主模式
- UART 2.1兼容,主/從模式和自動再同步
- SPI接口10 Mbit / s
- 我2 C接口400 Kbit / s
■10位ADC與16頻道
■多邊I / Os
- 68 I / Os 80 -銷計劃包括18個高輸出
- 高度健壯的I / O設計,免疫對電流注入
- 開發支持
- 單線接口模塊(游泳)和調試模塊(DM)
■惟一的ID
- 為每個設備——96位唯一鍵

STM8S207RBT6描述
STM8S207RBT6性能行8位微控制器提供從32到128 kb的Flash程序內存。
他們被稱為高密度設備STM8S單片機。

STM8S207RBT6性能線所有設備提供以下好處:
●降低系統成本
- 真正的數據集成eepm 300 k寫/擦除周期
- 與內部時鐘振蕩器高系統集成水平,監管機構和布朗——重置。
●性能和魯棒性
- 在24 MHz - 20 MIPS CPU時鐘頻率
- 健壯的I / O,獨立的監管機構,獨立的時鐘源
- 時鐘安全系統
●短開發周期
- 應用程序可伸縮性在一個共同的家庭產品架構兼容的引出線,
內存映射和模塊化的外圍設備。
- 完整的文檔和多種選擇的開發工具。
●產品壽命
- 先進的核心和外圍設備先進的技術制造的
- 一個家庭的產品應用與2.95 V至5.5 V操作供應
