| 型號 | 品牌 | 批號 | 數量 | 封裝 | 備注 |
| STM8S105K4T6C | ST | 22= | 5000000 | LQFP | Original 全新原裝 |

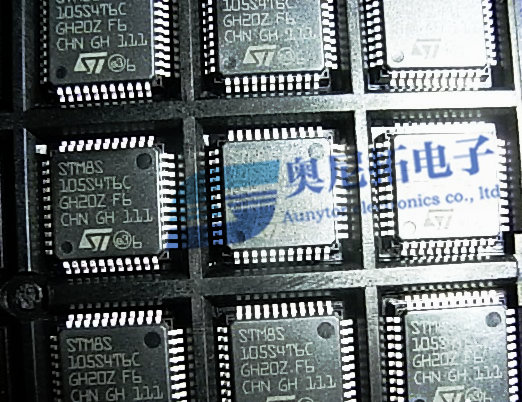

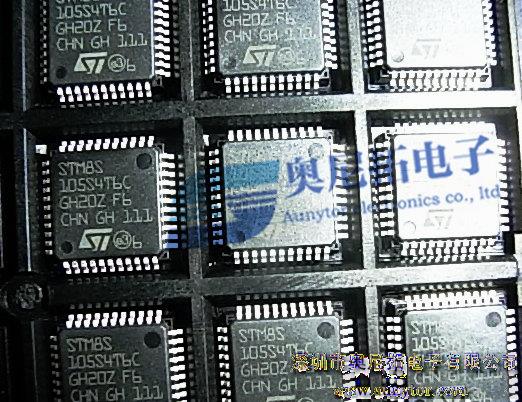

STM8S105K4T6C
pdf規格書
STM8S105K4T6CFeatures
Core
• 16 MHz advanced STM8 core with Harvard
architecture and 3-stage pipeline
• Extended instruction set
Memories
• Medium-density Flash/EEPROM:
- Program memory up to 32 Kbytes; data
retention 20 years at 55°C after 10 kcycles
- Data memory up to 1 Kbytes true data
EEPROM; endurance 300 kcycles
• RAM: Up to 2 Kbytes
Clock, reset and supply management
• 2.95 V to 5.5 V operating voltage
• Flexible clock control, 4 master clock sources:
- Low power crystal resonator oscillator
- External clock input
- Internal, user-trimmable 16 MHz RC
- Internal low power 128 kHz RC
• Clock security system with clock monitor
• Power management:
- Low power modes (wait, active-halt, halt)
- Switch-off peripheral clocks individually
• Permanentlyactive, low consumptionpower-on
and power-down resetInterrupt management
• Nested interrupt controller with 32 interrupts
• Up to 37 external interrupts on 6 vectors
Timers
• 2x 16-bit general purpose timers, with 2+3
CAPCOM channels (IC, OC or PWM)
• Advanced control timer: 16-bit, 4 CAPCOM
channels, 3 complementary outputs, dead-time
insertion and flexible synchronization
• 8-bit basic timer with 8-bit prescaler
• Auto wake-up timer
• Window and independent watchdog timers
Communications interfaces
• UART with clock output for synchronous
operation, Smartcard, IrDA, LIN
• SPI interface up to 8 Mbit/s
• I
2C interface up to 400 Kbit/s
Analog-to-digital converter (ADC)
• 10-bit, ±1 LSB ADC with up to 10 multiplexed
channels, scan mode and analog watchdog
I/Os
• Up to 38 I/Os on a 48-pin package including 16
high sink outputs
• Highly robust I/O design, immuneagainst current
injection
Development support
• Embeddedsingle wireinterface module(SWIM)
for fast on-chip programming and non intrusive
debugging
Unique ID
• 96-bit unique key for each device
STM8S105K4T6CDescription
The STM8S105xx access line 8-bit microcontrollers offer from 16 to 32 Kbytes Flash program
memory, plus integrated true data EEPROM. They are referred to as medium-density devices
in the STM8S microcontroller family reference manual (RM0016).
All devices of the STM8S105xx access line provide the following benefits:
• Reduced system cost
- Integrated true data EEPROM for up to 300 k write/erase cycles
- High system integration level with internal clock oscillators, watchdog and brown-out
reset.
• Performance and robustness
- 16 MHz CPU clock frequency
- Robust I/O, independent watchdogs with separate clock source
- Clock security system
• Short development cycles
- Applications scalability across a common family product architecture with compatible
pinout, memory map and and modular peripherals.
- Full documentation and a wide choice of development tools
• Product longevity
- Advanced core and peripherals made in a state-of-the art technology
- A family of products for applications with 2.95 to 5.5 V operating supply
16兆赫STM8S 8位單片機32 kb的Flash,集成eepm,10位ADC,計時器,UART,SPI,我²C
STM8S105K4T6C特性
中斷管理
•與32個中斷嵌套中斷控制器
•外部中斷向量
計時器
•2 x 16位通用定時器,2 + 3 CAPCOM渠道(IC,OC或PWM)
•高級控制定時器:16位、4 CAPCOM渠道,3互補輸出,空時插入和靈活的同步
•8位和8位預定標器基本定時器
•汽車喚醒定時器
•窗口和獨立的看門狗定時器
通信接口
•UART與時鐘輸出同步操作,智能卡,紅外線,林
•SPI接口8 Mbit / s
•2 c接口400 Kbit / s
模擬-數字轉換器(ADC)
•10位,±1 LSB和10多路復用通道ADC,掃描模式和模擬看門狗
I / o
•達38我/ Os 48-pin包包括16個高輸出
•高度健壯的I / O設計,immuneagainst電流注入
開發支持
•Embeddedsingle wireinterface模塊(游泳)快速芯片上的編程和非侵入性的調試
惟一的ID
•96位獨特的每個設備的關鍵
STM8S105K4T6C描述
STM8S105xx訪問行8位微控制器提供從16到32 kb的Flash程序內存,加上綜合eepm真實數據。他們被稱為制造設備STM8S單片機。
所有設備的STM8S105xx接入線路提供以下好處:
•降低系統成本
- 真正的數據集成eepm 300 k寫/擦除周期
- 與內部時鐘振蕩器高系統集成水平,監管機構和暗光重置。
•性能和魯棒性
- 16兆赫CPU時鐘頻率
- 健壯的I / O,獨立的監管機構,獨立的時鐘源
- 時鐘安全系統
•短開發周期
- 應用程序可伸縮性在一個共同的家庭產品架構兼容的引出線,內存映射和模塊化的外圍設備。
- 完整的文檔和多種選擇的開發工具
•產品壽命
- 先進的核心和外圍設備先進的技術制造的
- 產品應用與2.95到5.5 V操作供應
