MC33340: Battery Fast Charge Controller

Product Description :

The MC33340 and MC33342 are monolithic control ICs that are specifically designed as fast charge controllers for Nickel Cadmium (NiCd) and Nickel Metal Hydride (NiMH) batteries. These devices feature negative slope voltage detection as the primary means for fast charge termination. Accurate detection is ensured by an output that momentarily interrupts the charge current for precise voltage sampling. An additional secondary backup termination method can be selected that consists of either a programmable time or temperature limit. Protective features include battery over and undervoltage detection, latched over temperature detection, and power supply input undervoltage lockout with hysteresis. Fast charge holdoff time is the only difference between the MC33340 and the MC33342. The MC33340 has a typical holdoff time of 177 seconds and the MC33342 has a typical holdoff time of 708 seconds.

Features :

Negative Slope Voltage Detection with 4.0 mV Sensitivity

Accurate Zero Current Battery Voltage Sensing

High Noise Immunity with Synchronous VFC/Logic

Programmable 1 to 4 Hour Fast Charge Time Limit

Programmable Over/Under Temperature Detection

Battery Over and Undervoltage Fast Charge Protection

Power Supply Input Undervoltage Lockout with Hysteresis

Operating Voltage Range of 3.25 V to 18 V

177 seconds Fast Change Hold-off Time (MC33340)

708 seconds Fast Change Hold-off Time (MC33342)

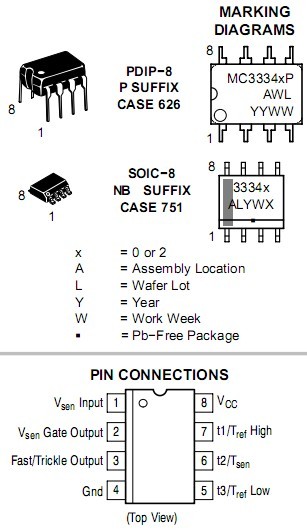

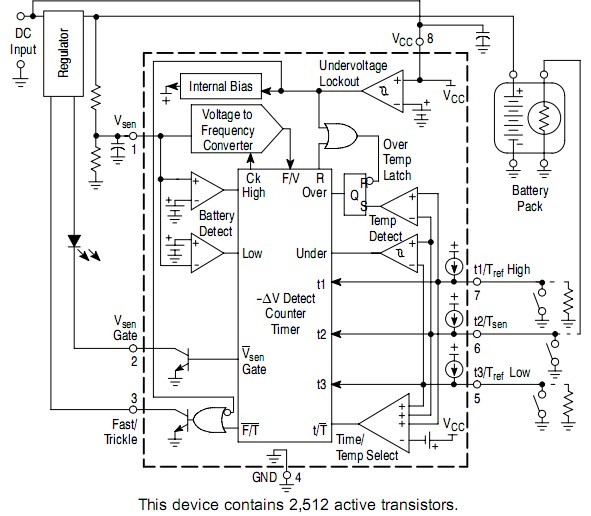

Functional Block Diagram :
