LTC6605-10 - Dual Matched 10MHz Filter with Low Noise, Low Distortion Differential Amplifier
· Click Here for LTC6605 Evaluation Kit
· Two Matched 10MHz 2nd Order Lowpass Filters
with Differential Amplifiers
Gain Match: ±0.35dB Max, Passband

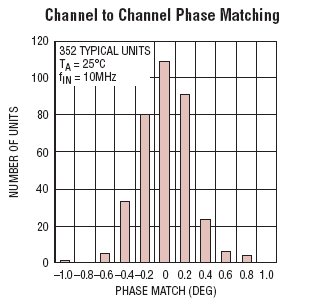

Phase Match: ±1.2° Max, Passband
Single-Ended or Differential Inputs
· < –90dBc Distortion in Passband
· 2.1nV/√Hz Op Amp Noise Density
· Pin-Selectable Gain (0dB/12dB/14dB)
· Pin-Selectable Power Consumption (0.35mA/ 16.2mA/33.1mA)
· Rail-to-Rail Output Swing
Adjustable Output Common Mode Voltage Control
Buffered, Low Impedance Outputs
· 2.7V to 5.25V Supply Voltage
· Small 22-Pin

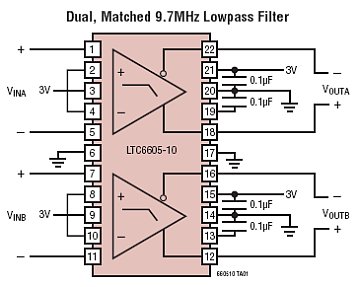

Typical Application
Description
The LTC6605-10 contains two independent, fully differential amplifiers configured as matched 2nd order 10MHz lowpass filters. The f–3dB of the filters is adjustable in the range of 9.7MHz to 14MHz.
The internal op amps are fully differential, feature very low noise and distortion, and are compatible with 16-bit dynamic range systems. The inputs can accept single ended or differential signals. An input pin is provided for each amplifier to set the common mode level of the differential outputs.
Internal laser-trimmed resistors and capacitors determine a precise, very well matched (in gain and phase) 10MHz 2nd order filter response. A single optional external resistor per channel can tailor the frequency response for each amplifier.
Three-state BIAS pins determine each amplifier’s power consumption, allowing a choice between shutdown, medium power or full power.
The LTC6605-10 is available in a compact

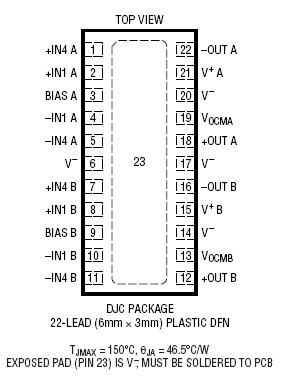

Packaging
DFN-22
