LTC6601-1 - Low Noise, 0.5% Tolerance, 5MHz to 28MHz, Pin Configurable Filter/ADC Driver
· Click Here for LTC6601 Evaluation Kit
· Pin Configurable Gain and Filter Response Up to 28MHz
· Few External Components Required
· Resistors Trimmed to 0.5% Typical
· Capacitors Trimmed to 0.5% Typical
· Very Low Noise: 80dB S/N in 100MHz Bandwidth
· Very Low Distortion (2VP-P):
1MHz: –100dBc 2nd, –123dBc 3rd
10MHz: –72dBc 2nd, –103dBc 3rd
· Adjustable Output Common Mode Voltage
· Rail-to-Rail Output Swing
· Power Configurability and Low Power Shutdown
· Tiny

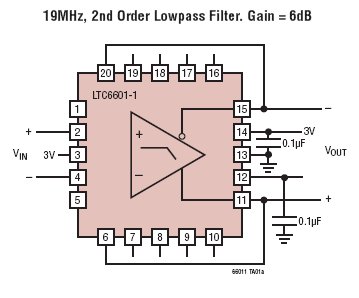

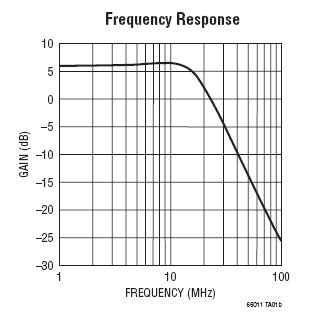

Typical Application
Description
The LTC6601-1 is a very easy-to-use fully differential 2nd order active RC filter and driver. On-chip resistors, capacitors, and amplifier bandwidth are trimmed to provide consistent and repeatable filter characteristics.
The filter characteristics are pin-strap configurable. Cutoff frequencies range from 5MHz to 28MHz. Gain is pin-strap programmable between –17dB and +17dB.
A three-state BIAS pin is provided to adjust amplifier power consumption. Select between high performance, low power (50% power reduction), and standby modes with the BIAS pin.
The LTC6601-1 is available in a compact

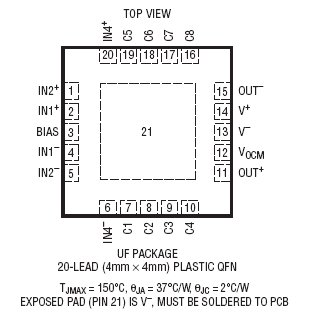

Packaging
QFN-20
