LTC2460 - Ultra-Tiny, 16-Bit ¦¤¦² ADCs with 10ppm/¡ãC Max Precision Reference

LTC2460 - Ultra-Tiny, 16-Bit ¦¤¦² ADCs with 10ppm/¡ãC Max Precision Reference

Features

¡¤                     16-Bit Resolution, No Missing Codes

¡¤                     Internal Reference, High Accuracy 10ppm/¡ãC (Max)

¡¤                     Single-Ended (LTC2460) or Differential (LTC2462)

¡¤                     2LSB Offset Error

¡¤                     0.01% Gain Error

¡¤                     60 Conversions Per Second

¡¤                     Single Conversion Settling Time for Multiplexed Applications

¡¤                     Single-Cycle Operation with Auto Shutdown

¡¤                     1.5mA Supply Current

¡¤                     2¦ÌA (Max) Sleep Current

¡¤                     Internal Oscillator¡ªNo External Components Required

¡¤                     SPI Interface

¡¤                     Ultra-Tiny 12-Lead 3mm ¡Á 3mm DFN and MSOP Packages

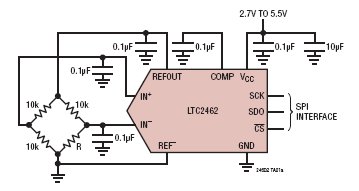

Typical Application

Description

The LTC2460/LTC2462 are ultra tiny, 16-Bit analog-to-digital converters with an integrated precision reference. They use a single 2.7V to 5.5V supply and communicate through an SPI Interface. The LTC2460 is single-ended with a 0V to V_REF input range and the LTC2462 is differential with a ¡ÀV_REF input range. Both ADC¡¯s include a 1.25V integrated reference with 2ppm/¡ãC drift performance and 0.1% initial accuracy. The converters are available in a 12-pin DFN 3mm ¡Á 3mm package or an MSOP-12 package. They include an integrated oscillator and perform conversions with no latency for multiplexed applications. The LTC2460/LTC2462 include a proprietary input sampling scheme that reduces the average input current several orders of magnitude when compared to conventional delta sigma converters.

Following a single conversion, the LTC2460/LTC2462 automatically power down the converter and can also be configured to power down the reference. When both the ADC and reference are powered down, the supply current is reduced to 200nA.

The LTC2460/LTC2462 can sample at 60 conversions per second, and due to the very large oversampling ratio, have extremely relaxed antialiasing requirements. Both include continuous internal offset and fullscale calibration algorithms which are transparent to the user, ensuring accuracy over time and the operating temperature range

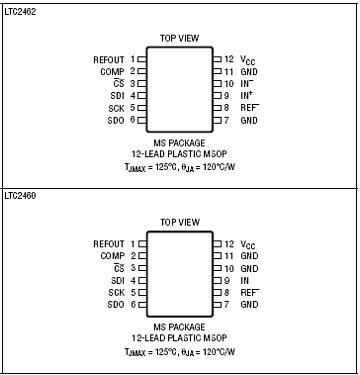

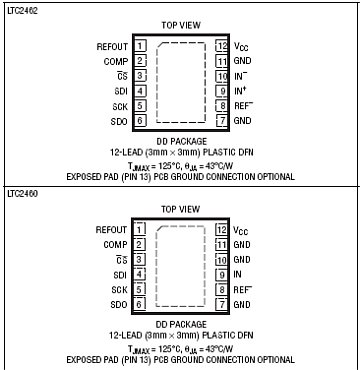

Packaging

DFN-12, MS-12
