LTM9003-AA - 12-Bit Digital Pre-Distortion Receiver Subsystem
Features
· Fully Integrated Receiver Subsystem for Digital Pre-Distortion Applications
· Down-Converting Mixer with Wide RF Frequency Range: 400MHz to 3.8GHz
· 125MHz Wide Bandpass Filter, <0.5dB Passband Ripple
· Low Power ADC with Up to 12-Bit Resolution, 250Msps Sample Rate
· –145.5dBm/Hz Input Noise Floor, 25.8dBm IIP3
· 1.5W Total Power Consumption
· 50Ω Single-Ended RF and LO Ports
· Internal Bypass Capacitance, No External Components
· ADC Clock Duty Cycle Stabilizer
·

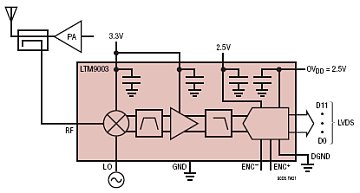

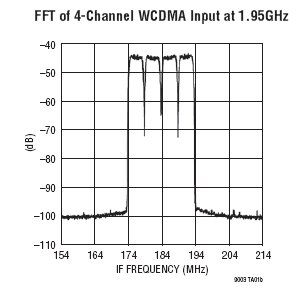

Typical Application
Description
The LTM9003 is a 12-bit digital pre-distortion receiver subsystem for the transmit path of cellular basestations. Utilizing an integrated system in a package (SiP) technology, it includes a downconverting mixer, wideband filter and analog-to-digital converter (ADC). The system is tuned for an intermediate frequency (IF) of 184MHz and a signal bandwidth of up to 125MHz. The 12-bit ADC samples at rates up to 250Msps. Contact Linear Technology regarding customization.
The high signal level downconverting active mixer is optimized for high linearity, wide dynamic range IF sampling applications. It includes a differential LO buffer amplifier driving a double-balanced mixer. Broadband, integrated transformers on the RF and LO inputs provide single ended 50Ω interfaces. The RF and LO inputs are internally matched to 50Ω from 1.1GHz to 1.8GHz.
The CLK input controls converter operation and may be driven differentially or single-ended. An optional clock duty cycle stabilizer allows high performance at full speed for a wide range of clock duty cycles

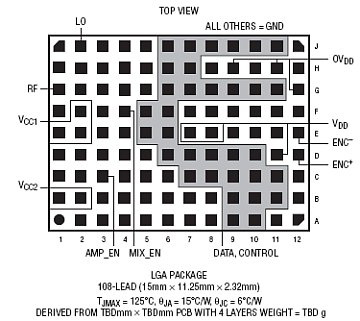

Packaging
