LT5534 - 50MHz to 3GHz RF Power Detector with 60dB Dynamic Range
· Click Here for LT5534 Evaluation Kit
· RF Frequency Range: 50MHz to 3GHz
· Linear Dynamic Range: 60dB
· Exceptional Accuracy over Temperature and Power Supply
· Fast Transient Response:
38ns Full-Scale Settling Time
· Single 2.7V to 5.25V Supply
· Low Supply Current: 7mA
· Shutdown Current: 0.1µA
· Tiny 6-Lead SC70 Package

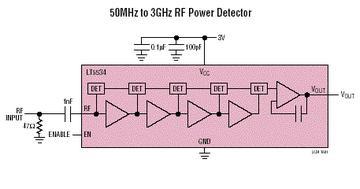

Typical Application
Description
The LT5534 is a 50MHz to 3GHz monolithic RF power detector capable of measuring RF signals over a 60dB dynamic range. The RF signal in a decibel scale is precisely converted into DC voltage on a linear scale. The 60dB input dynamic range is achieved using cascaded RF detectors and RF limiters. Their outputs are summed to generate an accurate log-linear DC voltage proportional to the input RF signal in dB. The output is buffered with a low output impedance driver. The LT5534 delivers superior temperature stability (typical output variation within ±1dB over the full temperature range). The output responds in less than 40ns to a large RF input signal.

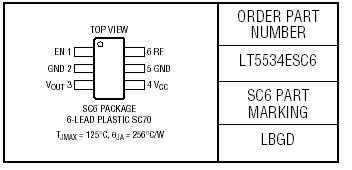

Packaging
SC70
