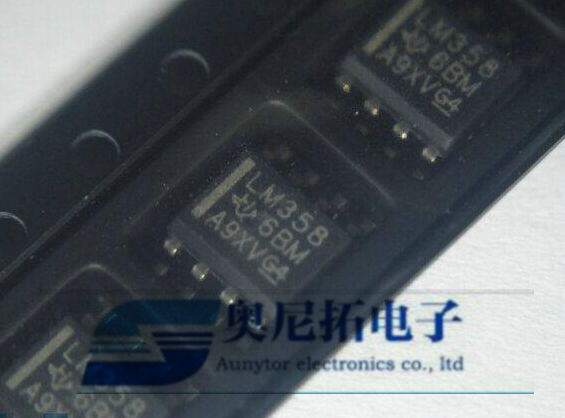

LM358 DUAL DIFFERENTIAL INPUT OPERATIONAL AMPLIFIERS

These devices consist of two independent,
high-gain frequency-compensated operational
amplifiers designed to operate from a single
supply or split supply over a wide range of voltages.

Features

Wide Supply Ranges
Single Supply: 3 V to 32 V (26 V for LM2904)
Dual Supplies: ¡À1.5 V to ¡À16 V (¡À13 V for LM2904)
Low Supply-Current Drain, Independent of Supply
Voltage: 0.7 mA Typical
Wide Unity Gain Bandwidth: 0.7 MHz
Common-Mode Input Voltage Range Includes Ground,
Allowing Direct Sensing Near Ground
Low Input Bias and Offset Parameters
Input Offset Voltage: 3 mV Typical A Versions: 2 mV Typical
Input Offset Current: 2 nA Typical
Input Bias Current: 20 nA Typical A Versions: 15 nA Typical
Differential Input Voltage Range Equal to Maximum-Rated
Supply Voltage: 32 V (26 V for LM2904)
Open-Loop Differential Voltage Gain: 100 dB Typical
Internal Frequency Compensation
On Products Compliant to MIL-PRF-38535, All Parameters
are Tested Unless Otherwise Noted. On All Other Products,
Production Processing Does Not Necessarily Include Testing
of All Parameters.

Applications

Blu-ray Players and Home Theaters
Chemical and Gas Sensors
DVD Recorder and Players
Digital Multimeter: Bench and Systems
Digital Multimeter: Handhelds
Field Transmitter: Temperature Sensors
Motor Control: AC Induction, Brushed DC, Brushless DC,
High-Voltage, Low-Voltage, Permanent Magnet, and Stepper
Motor Oscilloscopes
TV: LCD and Digital
Temperature Sensors or Controllers Using Modbus
Weigh Scales
