Features
Glass Passivated Die Construction
High Case Dielectric Strength of 1500VRMS
Low Reverse Leakage Current
Surge Overload Rating to 200A Peak
Ideal for Printed Circuit Board Applications
Plastic Material: UL Flammability
Classification Rating 94V-0
UL Listed Under Recognized Component
Index, File Number E94661

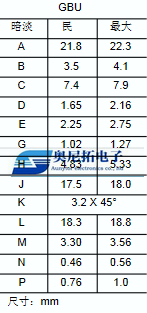

Mechanical Data
Case: Molded Plastic
Terminals: Plated Leads Solderable per
MIL-STD-202, Method 208
Polarity: Marked on Body
Mounting: Through Hole for #6 Screw
Mounting Torque: 5.0 Inch-pounds Maximum
Marking: Date Code and Type Number
Weight: 6.6 grams (approx.)
Maximum Ratings and Electrical Characteristics @ TA= 25°C unless otherwise specified
Single phase, 60Hz, resistive or inductive load.
For capacitive load, derate current by 20%
Notes: 1. United mounted on 50 x 50 x 1.6mm copper plate heatsink.
2. Non-repetitive, for t > 1.0ms and < 8.3ms
3. Measured at 1.0MHz and applied reverse voltage of 4.0V DC
