Description
The DS26LS32 and DS26LS32A are quad differential
line receivers designed to meet the RS-422, RS-423
and Federal Standards 1020 and 1030 for balanced
and unbalanced digital data transmission.
The DS26LS32 and DS26LS32A have an input sensitivity
of 200 mV over the input voltage range of ±7V.
The DS26LS33 has an input sensitivity of 500 mV over
the input voltage range of ±15V.
The DS26LS32A differs in function from the popular
DS26LS32 and DS26LS33 in that input pull-up and pull-down
resistors are included which prevent output oscillation
on unused channels.
Each version provides an enable and disable function common
to all four receivers and features TRI-STATE outputs with
8 mA sink capability.
Constructed using low power Schottky processing, these devices
are available over the full military and commercial operating
temperature ranges.
Features
High Differential or Common-Mode Input Voltage Ranges
of ±7V on the DS26LS32.
±0.2V Sensitivity Over the Input Voltage Range on the
DS26LS32.
DS26LS32 Meet All Requirements of RS-422 and RS-423
6k Minimum Input Impedance
100 mV Input Hysteresis on the DS26LS32
Operation From a single 5V Supply
TRI-STATE Outputs, with Choice of Complementary Output
Enables for Receiving Directly onto a Data Bus

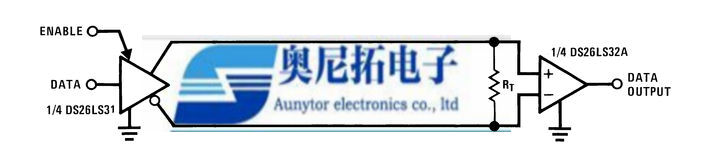

Typical Application
PART Temp（℃） Package/Pins
5962-7802006QEA -55 to 125 CDIP (NFE) | 16
DS26LS32MJ/883 -55 to 125 CDIP (NFE) | 16
