Description
The ’HC32 and ’HCT32 contain four 2-input
OR gates in one package. Logic gates utilize
silicon gate CMOS technology to achieve
operating speeds similar to LSTTL gates with
the low power consumption of standard CMOS
integrated cir-cuits. All devices have the
ability to drive 10 LSTTL loads.The HCT logic
family is functionally pin compatible with the
standard LS logic family.
Features
Typical Propagation Delay: 7ns at V
CC= 5V,CL= 15pF, TA= 25℃
Fanout (Over Temperature Range)
- Standard Outputs . . . . . 10 LSTTL Loads
- Bus Driver Outputs . . . . 15 LSTTL Loads
Wide Operating Temperature Range . . . -55℃
to 125℃
Balanced Propagation Delay and Transition Times
Significant Power Reduction Compared to LSTTL
Logic ICs
HC Types
- 2V to 6V Operation
- High Noise Immunity: N
IL= 30%, NIH= 30% of V CC at VCC = 5V
HCT Types
- 4.5V to 5.5V Operation
- Direct LSTTL Input Logic Compatibility,
VIL= 0.8V (Max), VIH= 2V (Min)
- CMOS Input Compatibility, I l≤1µA at VOL, VOH

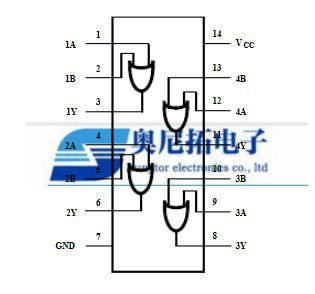

Functional Diagram

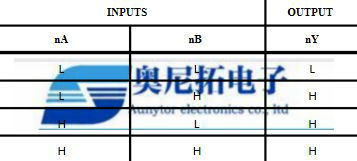

TRUTH TABLE
H = High Voltage Level, L = Low Voltage Level
HC Logic Symbol
HCT Logic Symbol
Test Circuits and Waveforms

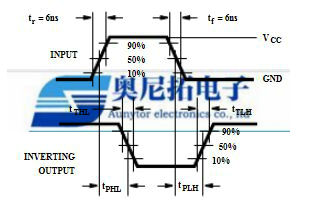

HC AND HCU TRANSITION TIMES AND PROPAGA-
TION DELAY TIMES, COMBINATION LOGIC

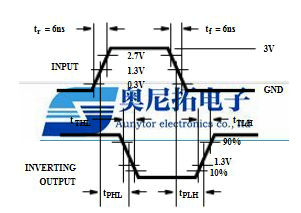

HCT TRANSITION TIMES AND PROPAGATION
DELAY TIMES, COMBINATION LOGIC
Part No Temp(℃) Package
CD54HC32F3A -55 to 125 CERDIP-14
CD54HCT32F3A -55 to 125 CERDIP-14
CD74HC32E -55 to 125 PDIP-14
CD74HC32M -55 to 125 SOIC-14
CD74HC32MT -55 to 125 SOIC-14
CD74HC32M96 -55 to 125 SOIC-14
CD74HCT32E -55 to 125 PDIP-14
CD74HCT32M -55 to 125 SOIC-14
CD74HCT32MT -55 to 125 SOIC-14
CD74HCT32M96 -55 to 125 SOIC-14
