Description
The GLT440L16 is a 262,144 x 16 bit
high-performance CMOS dynamic random
access memory. The GLT44016 offers Fast
Page mode with Extended Data Output, and
has both BYTE WRITE and WORD WRITE
access cycles via two CAS pins. The
GLT440L16 has symmetric address and
accepts 512-cycle refresh in 8ms interval.
All inputs are TTL compatible. EDO
Page Mode operation allows random access
up to 512 x 16 bits within a page, with cycle
time as short as 14ns.
The GLT440L16 is best suited for
graphics, and DSP applications requiring
high performance memories.
Features
262,144 words by 16 bits organization.
Fast access time and cycle time.
Dual CAS Input.
Low power dissipation.
Read-Modify-Write,RAS-Only Refresh,
CAS-Before-RAS Refresh, Hidden Refresh
and Test Mode Capability.
512 refresh cycles per 8ms.
Available in 40-Pin 400 mil SOJ and 40/44
Pin TSOP(II)
Single +3.3V±10% Power Supply.
All inputs and Outputs are TTL compatible.
Extended Data-Out(EDO) Page Mode
operation.

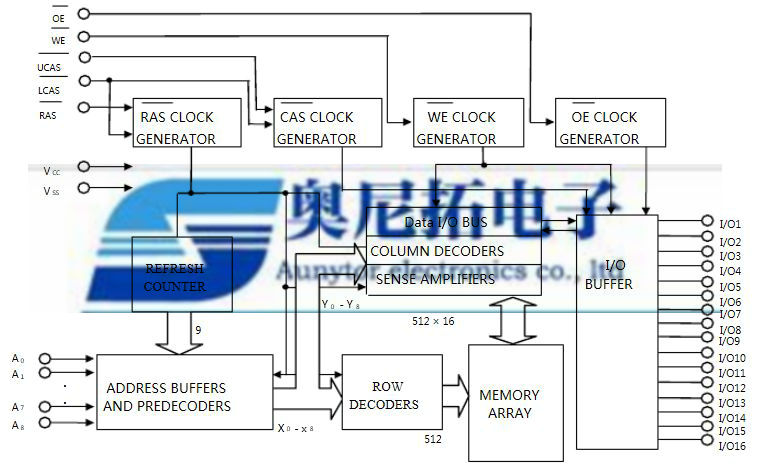

Block Diagram

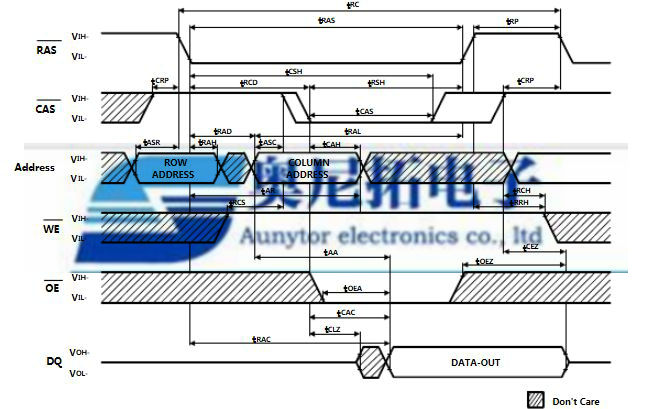

Read Cycle

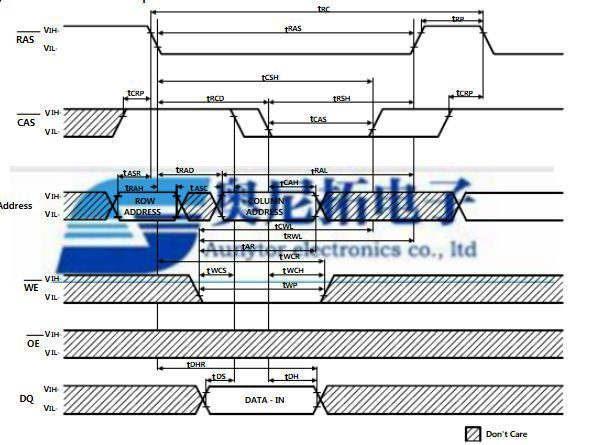

Early Write Cycle NOTE :DOUT = Open

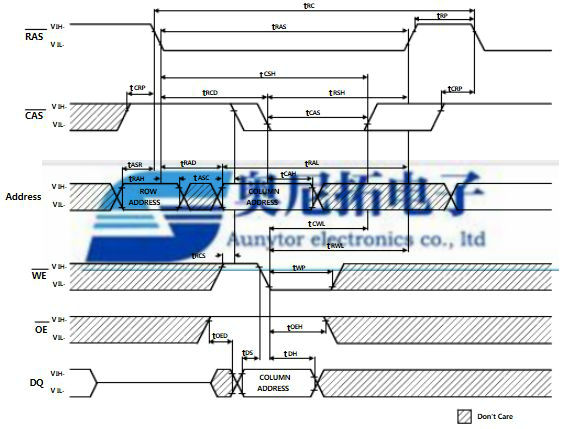

Late Write Cycle ( OE Controlled Write)
NOTE : DOUT = Open
Read - Modify - Write Cyc
Part No Speed Package
GLT440L16-35J4 35ns 40L 400mil SOJ
GLT440L16-40J4 40ns 40L 400mil SOJ
GLT440L16-50J4 50ns 40L 400mil SOJ
GLT440L16-35TC 35ns 44L 400mil TSOP
GLT440L16-40TC 40ns 44L 400mil TSOP
GLT440L16-50TC 50ns 44L 400mil TSOP
