Description
The LIS3DSH is an ultra low-power high
performance three-axis linear accelerometer
belonging to the ¡°nano¡± family with embedded
state machine that can be programmed to
implement autonomous applications.
The LIS3DSH has dynamically selectable full
scales of ¡À2y/¡À4y/¡À6y/¡À8y/¡À16y and it is capable
of measuring accelerations with output data rates
from 3.125 Hz to 1.6 kHz.
The self-test capability allows the user to check
the functioning of the sensor in the final
application.
The device can be configured to generate
interrupt signals activated by user defined motion
patterns.
The LIS3DSH has an integrated first in, first out
(FIFO) buffer allowing the user to store data for
host processor intervention reduction.
The LIS3DSH is available in a small thin plastic
land grid array package (LGA) and it is
guaranteed to operate over an extended
temperature range from -40¡æto +85¡æ.
Features
Wide supply voltage, 1.71 V to 3.6 V
Independent IOs supply (1.8 V) and supply
voltage compatible
Ultra low-power consumption
¡À2y/¡À4y/¡À6y/¡À8y/¡À16y dynamically selectable
full-scale
I 2 C/SPI digital output interface
16-bit data output
Programmable embedded state machines
Embedded temperature sensor
Embedded self-test
Embedded FIFO
10000g high shock survivability
ECOPACK ®RoHS and ¡°Green¡± compliant
Applications
Motion controlled user interface
Gaming and virtual reality
Pedometer
Intelligent power saving for handheld devices
Display orientation
Click/double click recognition
Impact recognition and logging
Vibration monitoring and compensation

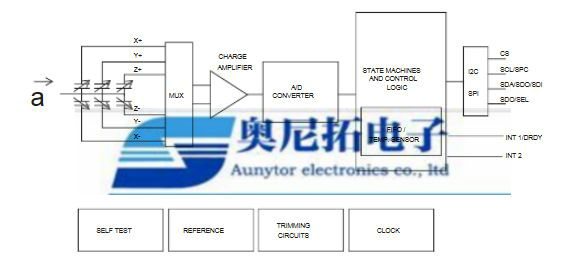

Block diagram

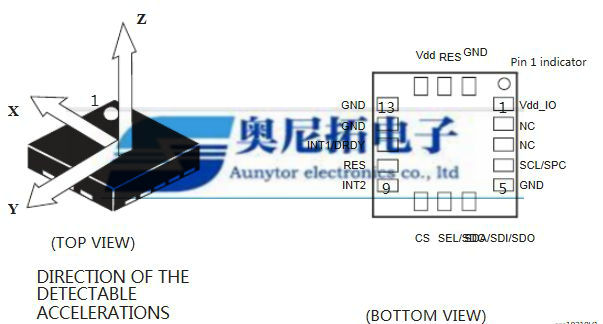

Pin connection

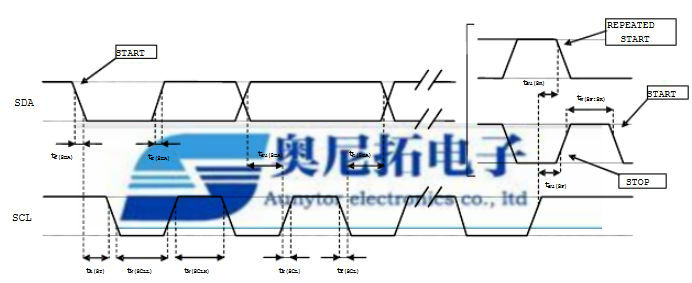

I 2 C slave timing diagram

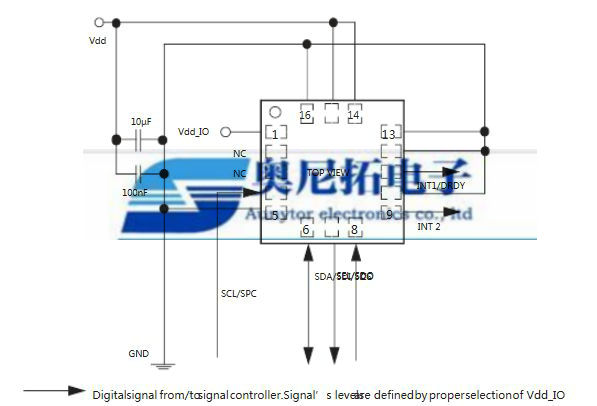

LIS3DSH electrical connection
P/N Temp(0¡æ) Package Packing
LIS3DSH -40 to +85 LGA-16 490pcs/Tray
LIS3DSHTR -40 to +85 LGA-16 4000pcs/Reel
