Description
The LIS3DH is an ultra low-power high
performance three axes linear accelerometer
belonging to the ¡°nano¡± family, with digital
I 2 C/SPI serial interface standard output.
The device features ultra low-power operational
modes that allow advanced power saving and smart
embedded functions.
The LIS3DH has dynamically user selectable full
scales of ¡À2y/¡À4y/¡À8y/¡À16y and it is capable of
measuring accelerations with output data rates
from 1 Hz to 5 kHz. The self-test capability allows
the user to check the functioning of the sensor in
the final application. The device may be
configured to generate interrupt signals by two
independent inertial wake-up/free-fall events as
well as by the position of the device itself.
Thresholds and timing of interrupt generators are
programmable by the end user on the fly. The
LIS3DH has an integrated 32-level first in, first out
(FIFO) buffer allowing the user to store data for
host processor intervention reduction. The
LIS3DH is available in small thin plastic land grid
array package (LGA) and it is guaranteed to
operate over an extended temperature range from
-40¡æ to +85¡æ.
Features
Wide supply voltage, 1.71 V to 3.6 V
Independent IOs supply (1.8 V) and supply
voltage compatible
Ultra low-power mode consumption
down to 2 ¦ÌA
¡À2y/¡À4y/¡À8y/¡À16y dynamically selectable full-scale
I 2 C/SPI digital output interface
16 bit data output
2 independent programmable interrupt
generators for free-fall and motion detection
6D/4D orientation detection
Free-fall detection
Motion detection
Embedded temperature sensor
Embedded self-test
Embedded 96 levels of 16 bit data output FIFO
10000g high shock survivability
ECOPACK ® RoHS and ¡°Green¡± compliant
Applications
Motion activated functions
Free-fall detection
Click/double click recognition
Intelligent power saving for handheld devices
Pedometer
Display orientation
Gaming and virtual reality input devices
Impact recognition and logging
Vibration monitoring and compensation

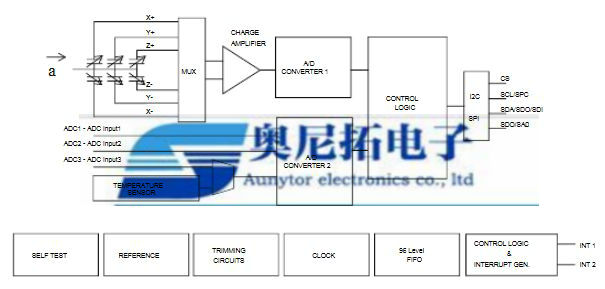

Block diagram

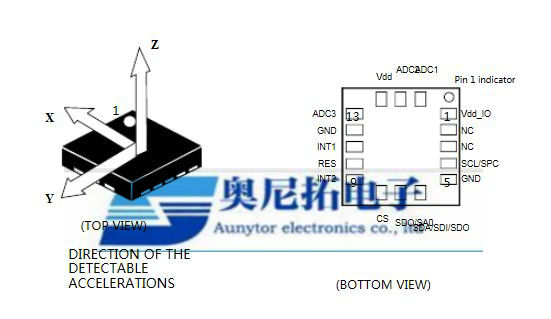

Pin connection

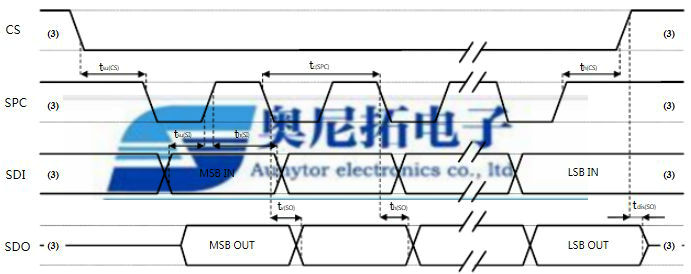

SPI slave timing diagram

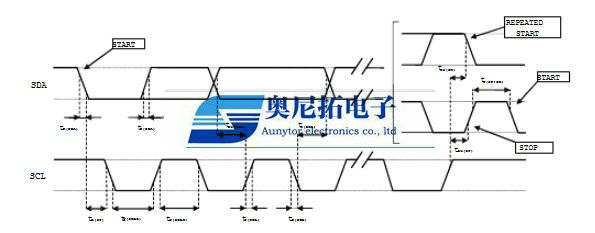

I 2 C Slave timing diagram
LIS3DH electrical connection
P/N Temp(0¡æ) Package Packing
LIS3DH -40 to +85 LGA-16 490pcs/Tray
LIS3DHTR -40 to +85 LGA-16 4000pcs/Reel
