Description
The LIS331HH is an ultra low-power high
performance high full-scale three axes linear
accelerometer belonging to the “nano” family, with
digital I 2 C/SPI serial interface standard output.
The device features ultra low-power operational
modes that allow advanced power saving and
smart sleep to wake-up functions.
The LIS331HH has dynamically user selectable
full scales of ±6g/±12g/±24g and it is capable of
measuring accelerations with output data rates
from 0.5 Hz to 1 kHz. The self-test capability
allows the user to check the functioning of the
sensor in the final application.
The device contains 2 indipendent interrupt
engines able to recognize dedicated inertial
events.
Thresholds and timing of interrupt generators are
programmable by the end user on the fly.
The LIS331HH is available in small thin plastic
land grid array package (LGA) and it is
guaranteed to operate over an extended
temperature range from -40℃ to +85 ℃.
Features
Wide supply voltage, 2.16 V to 3.6 V
Low voltage compatible IOs, 1.8 V
Ultra low-current mode consumption
down to 10 µA
±6y/±12y/±24y dynamically selectable full-
scale
I 2 C/SPI digital output interface
16 bit data output
2 independent programmable interrupt engines
Sleep to wake-up function
6D orientation detection
Embedded self-test
10000g high shock survivability
ECOPACK® RoHS and “Green” compliant (see
Section 8)
Applications
Pedometer
Gaming and virtual reality input devices
Motion activated functions
Impact recognition and logging
Intelligent power saving for handheld devices
Vibration monitoring and compensation

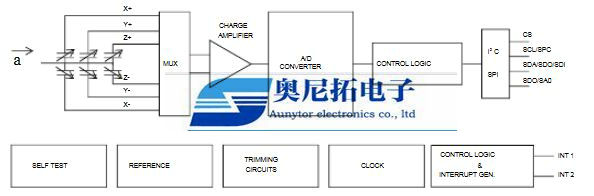

Block diagram
Pin connection

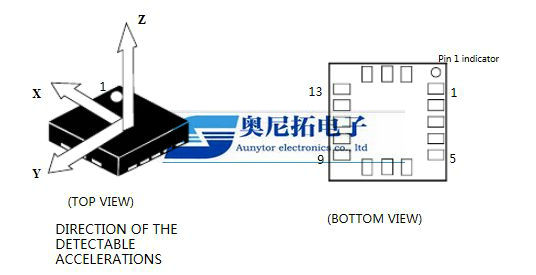

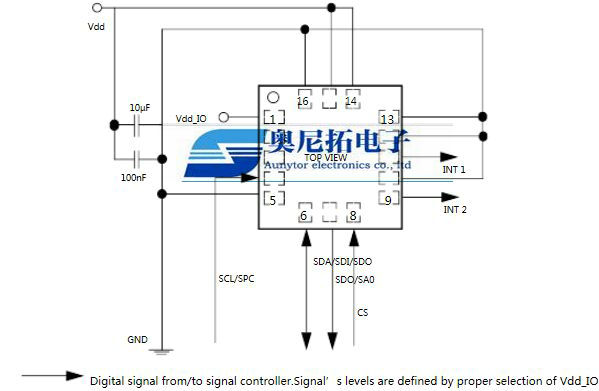

LIS331HH electrical connection
P/N Temp(0℃) Package Packing
LIS331HH -40 to +85 LGA16 Tray
LIS331HHTR -40 to +85 LGA16 Reel
