Description
The LIS331DLH is an ultra low-power high
performance three axes linear accelerometer
belonging to the “nano” family, with digital
I 2 C/SPI serial interface standard output.
The device features ultra low-power operational
modes that allow advanced power saving and
smart sleep to wake-up functions.
The LIS331DLH has dynamically user selectable
full scales of ±2g/±4g/±8g and it is capable of
measuring accelerations with output data rates
from 0.5 Hz to 1 kHz.
The self-test capability allows the user to check
the functioning of the sensor in the final
application.
The device may be configured to generate
interrupt signal by inertial wake-up/free-fall events
as well as by the position of the device itself.
Thresholds and timing of interrupt generators are
programmable by the end user on the fly.
The LIS331DLH is available in small thin plastic
land grid array package (LGA) and it is
guaranteed to operate over an extended
temperature range from -40℃ to +85℃.
Features
Wide supply voltage, 2.16 V to 3.6 V
Low voltage compatible IOs, 1.8 V
Ultra low-power mode consumption
down to 10 µA
±2y/±4y/±8y dynamically selectable full-scale
I 2 C/SPI digital output interface
16 bit data output
2 independent programmable interrupt
generators for free-fall and motion detection
Sleep to wake-up function
6D orientation detection
Embedded self-test
10000g high shock survivability
ECOPACK ® RoHS and “Green” compliant (see
Section 8)
Applications
Motion activated functions
Free-fall detection
Intelligent power saving for handheld devices
Pedometer
Display orientation
Gaming and virtual reality input devices
Impact recognition and logging
Vibration monitoring and compensation

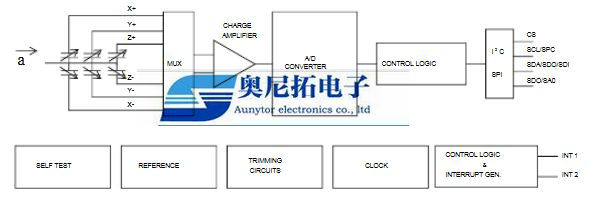

Block diagram

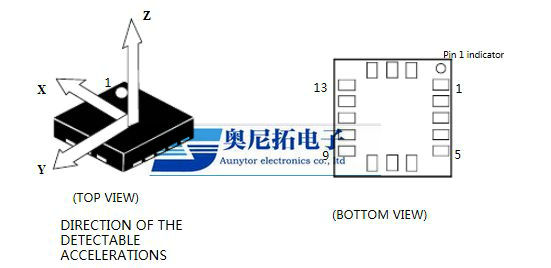

Pin connection

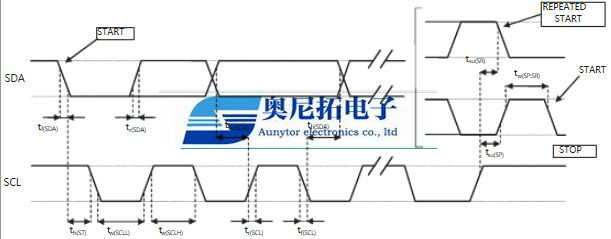

I 2 C Slave timing diagram

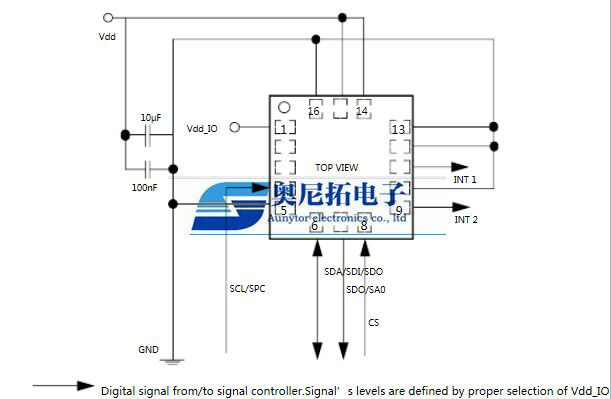

LIS331DLH electrical connection
P/N Temp(0℃) Package Packing
LIS331DLH -40 to +85 LGA16 490pcs/Tray
LIS331DLHTR -40 to +85 LGA16 4000pcs/Reel
