DS21354LN 3.3V/5V E1 Single-Chip Transceivers

GENERAL DESCRIPTION

The DS21354/DS213554 single-chip transceivers
(SCTs) contain all the necessary functions to connect to
E1 lines. The devices are upward-compatible versions
of the DS2153 and DS2154 SCTs. The on-board

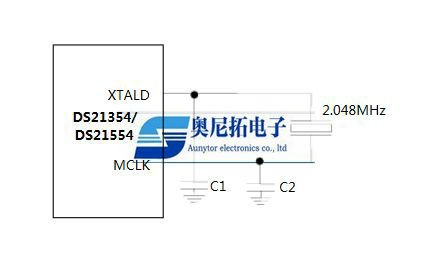

clock/data recovery circuitry coverts the AMI/HDB3 E1
waveforms to an NRZ serial stream. Both devices
automatically adjust to E1 22AWG (0.6mm) twisted-
pair cables from 0 to over 2km in length. They can
generate the necessary G.703 waveshapes for both 75W
coax and 120W twisted cables. The on-board jitter
attenuator (selectable to either 32 bits or 128 bits) can
be placed in either the transmit or receive data paths.
The framer locates the frame and multiframe
boundaries and monitors the data stream for alarms. It is
also used for extracting and inserting signaling data, Si,
and Sa-bit information. The on-board HDLC controller
can be used for Sa-bit links or DS0s. The devices
contain a set of internal registers that the user can
access to control the operation of the units. Quick
access through the parallel control port allows a single

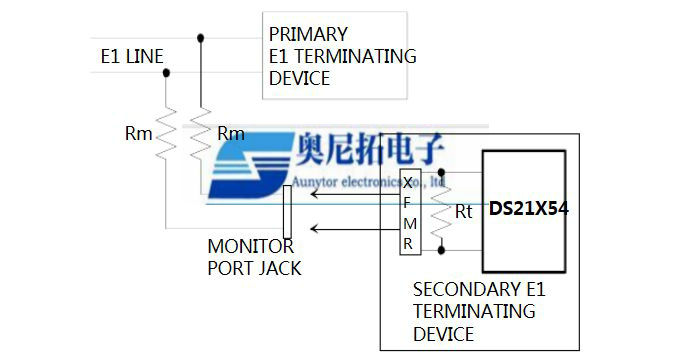

controller to handle many E1 lines. The devices fully
meet all the latest E1 specifications, including ITU-T
G.703, G.704, G.706, G.823, G.732, and I.431, ETS
300 011, 300 233, and 300 166, as well as CTR12 and
CTR4.

FEATURES

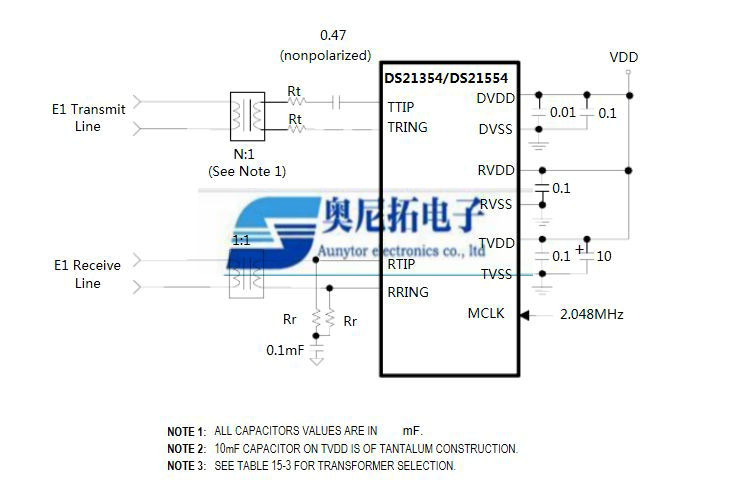

Complete E1 (CEPT) PCM-30/ISDN-PRI
Transceiver Functionality
On-Board Long- and Short-Haul Line Interface
for Clock/Data Recovery and Waveshaping

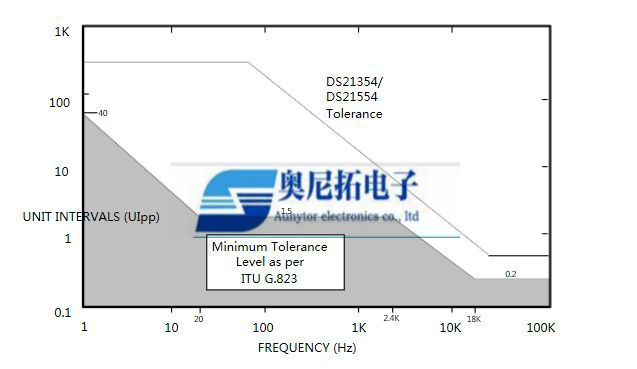

32-Bit or 128-Bit Crystal-Less Jitter Attenuator
Frames to FAS, CAS, CCS, and CRC4 Formats
Integral HDLC Controller with 64-Byte Buffers
Configurable for Sa Bits, DS0, or Sub-DS0
Operation
Dual Two-Frame Elastic Store Slip Buffers that
can Connect to Asynchronous Backplanes up to
8.192MHz
Interleaving PCM Bus Operation
8-Bit Parallel Control Port that can be used
Directly on Either Multiplexed or
Nonmultiplexed Buses (Intel or Motorola)
Extracts and Inserts CAS Signaling
Detects and Generates Remote and AIS Alarms
Programmable Output Clocks for Fractional E1,
H0, and H12 Applications
Fully Independent Transmit and Receive
Functionality
Full Access to Si and Sa Bits Aligned with
CRC-4 Multiframe
Four Separate Loopback Functions for Testing
Functions
Large Counters for Bipolar and Code Violations,
CRC4 Codeword Errors, FAS Word Errors, and
E Bits

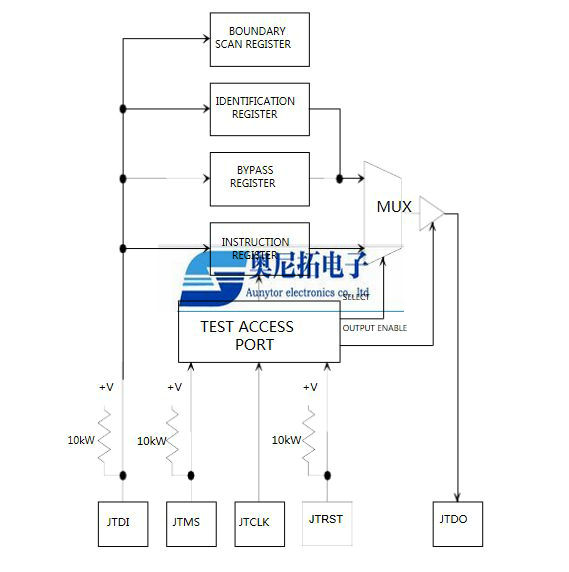

IEEE 1149.1 JTAG-Boundary Scan Architecture
Pin Compatible with DS2154/52/352/552 SCTs
3.3V (DS21354) or 5V (DS21554) Supply; Low-
Power CMOS

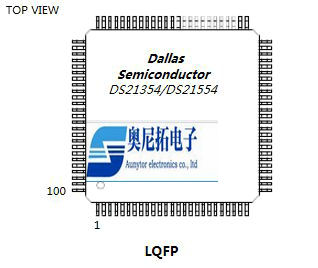

100-pin LQFP package (14mm x 14mm)
