LTC6241IS8 Single/Dual/Quad 18MHz, Low Noise, Rail-to-Rail Output, CMOS Op Amps

DESCRIPTION

The LTC6240/6241/LTC6242 are single, dual and quad
low noise, low offset, rail-to-rail output, unity gain stable
CMOS op amps that feature 1pA of input bias current. Input
bias current is guaranteed to be 1pA max on the single
LTC6240. The 0.1Hz to 10Hz noise of only 550nV, along
with an offset of just 125µV are signiﬁcant improvements
over traditional CMOS op amps. Additionally, noise is
guaranteed to be less than 10nV/��Hz at 1kHz. An 18MHz
gain bandwidth, and 10V/µs slew rate, along with the wide
supply range and low input capacitance, make them perfect
for use as fast signal processing ampliﬁers.

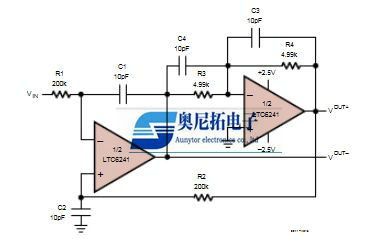

These op amps have an output stage that swings within
30mV of either supply rail to maximize the signal dynamic
range in low supply applications. The input common mode
range extends to the negative supply. They are fully speci-
ﬁed on 3V and 5V, and an HV version guarantees operation
on supplies up to ��5V.
The LTC6240 is available in the 8-pin SO and the 5-pin
SOT-23 packages. The LTC6241 is available in the 8-pin
SO, and for compact designs it is packaged in a tiny dual
ﬁne pitch leadless (DFN) package. The LTC6242 is avail-
able in the 16-Pin SSOP as well as the 5mm��3mm DFN
package.

FEATURES

0.1Hz to 10Hz Noise: 550nV
Input Bias Current:
0.2pA (Typ at 25��C)
1pA Max (LT6240)
Low Offset Voltage: 125µV Max
Low Offset Drift: 2.5µV/�� Max
Gain Bandwidth Product: 18MHz
Output Swings Rail-to-Rail
Supply Operation:
2.8V to 6V LTC6240/LTC6241/LTC6242
2.8V to ��5.5V LTC6240HV/LTC6241HV/LTC6242HV
Low Input Capacitance
H Grade Temperature Range: �C40��C to 125��C
Single LTC6240 in 5-Pin SOT-23 Package and
8-Pin SO for PCB Guard Ring
Dual LTC6241 in 8-Pin SO and Tiny DFN Packages
Quad LTC6242 in 16-Pin SSOP and 5mm �� 3mm
DFN Packages
