General Description
The AME431B series ICs are 3-terminal adjustable
shunt regulator with guaranteed temperature
stability over a full operation range.
These ICs feature sharp turn-on characteristics,
low temperature coefficient and low out-put impendance,
which make them ideal substitutes for Zener diodes in
applications such as switching power supply, charger
and other adjustable regulators.
The reference is set to 1.24V for AME431Bxxxxx12.
The output voltage can be set to 1.24V to 16V for
V REF =1.24V part type with two external resistors.
The AME431B precision reference is offered in two ref-
erence tolerance: 0.5% and 1.0%
The 5 main packages have low thermal impendance
which allows operation over a wide range of
-40℃ to +125℃.
Features
Very Accurate Reference Voltage : 0.15% Typical
High Stability under Capacitive Load
Low Temperature Deviation: 4.5mV Typical
Low Equivalent Full-range Temperature Coefficient
with 20PPM/℃ Typical
Low Dynamic Output Resistance: 0.2Ω Typical
Sink Current Capacity from 1mA to 100mA
Low Output Noise
Available in 7 Packages: TO-92, SOT-23, TSOT-23,
SOT-89, SOP-8 and SOT-25, TSOT-25
All AME's Lead Free Products Meet RoHS
Standards
Applications
Adjustable Power Supplies
Linear Regulators
Battery Operated Computer
Portable Electronics
Instrumentation
Switching Power Supply
Mother Board
LCD Monitor
Note Book Computer
Functional Block Diagram
Pin Configuration

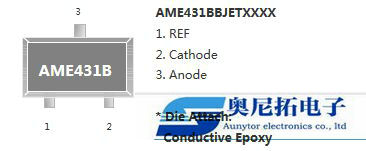

SOT-23/TSOT-23 Top View

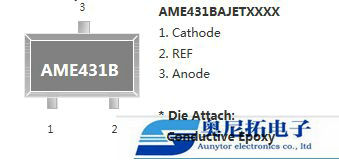

SOT-23/TSOT-23 Top View

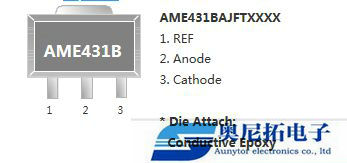

SOT-89 Top View

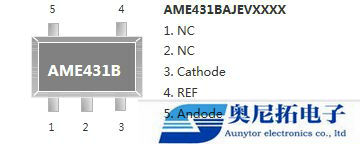

SOT-25/TSOT-25 Top View

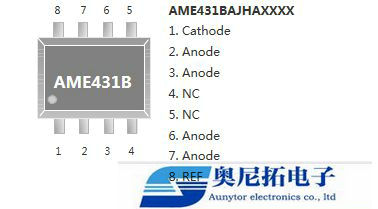

SOP-8 Top View
TO-92-3 Top View
P/N Temp(0℃) Package
AME431BAJETA12 -40℃ to +125℃ SOT-23
AME431BAJETA12L -40℃ to +125℃ SOT-23
AME431BAJETA12Y -40℃ to +125℃ SOT-23
AME431BAJETA12Z -40℃ to +125℃ SOT-23
AME431BAJETB12 -40℃ to +125℃ SOT-23
AME431BAJETB12L -40℃ to +125℃ SOT-23
AME431BAJETB12Y -40℃ to +125℃ SOT-23
AME431BAJETB12Z -40℃ to +125℃ SOT-23
AME431BBJETA12 -40℃ to +125℃ SOT-23
AME431BBJETA12L -40℃ to +125℃ SOT-23
AME431BBJETA12Y -40℃ to +125℃ SOT-23
