General Description
The AP432/432A are 3-terminal adjustable
precision shunt regulators with guaranteed
stable temperature over the applicable extended
commercial temperature range. The output voltage
may be set at any level greater than 1.24V
(V REF) up to 20V merely by selecting two
external resistors that act as a voltage
divider network. These devices have a typical
output impedance of 0.2Ω. Active
output circuitry provides very sharp turn-on
characteristics, making these devices excellent
improved replacements for Zener diodes in many
applications.
The precise +/- 1% reference voltage tolerance of
the AP432/432A make it possible in many
applications to avoid the use of a variable resistor,
consequently saving cost and eliminating drift and
reliability problems associated with it.
Features
- Precision reference voltage
AP432 : 1.24V± 1%
AP432A : 1.24V± 0.5%
- Sink current capability: 200mA.
- Minimum cathode current for regulation: 150µA
- Equivalent full-range temp coefficient: 30 ppm/℃
- Fast turn-on Response.
- Low dynamic output impedance: 0.2Ω
- Programmable output voltage to 20v
- Low output noise
- Packages: SOT89, SOT23, SOT25, SOP8 and
TO92

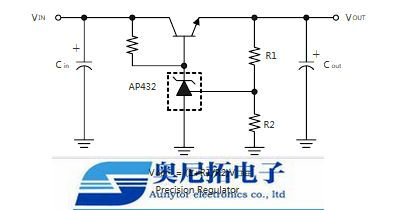

Typical Application Circuit

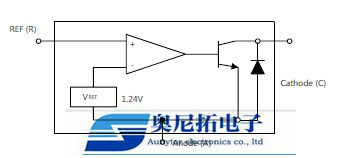

Block Diagram
Pin Configuration
SOT89
SOT23
SOT23
SOP
SOT25
P/N Package
AP432Y SOT89
AP432AY SOT89
AP432IY SOT89
AP432IAY SOT89
AP432V TO92
AP432AV TO92
AP432IV TO92
AP432IAV TO92
AP432Q SOT25
AP432AQ SOT25
AP432IQ SOT25
AP432IAQ SOT25
AP432 SOP
AP432A SOP
AP432I SOP
AP432IA SOP
AP432W SOT23
AP432AW SOT23
AP432IW SOT23
AP432IAW SOT23
AP432R SOT23
AP432AR SOT23
AP432IR SOT23
AP432IAR SOT23
