The MC34161/MC33161 are universal voltage monitors
intended for use in a wide variety of voltage sensing
applications. These devices offer the circuit designer
an economical solution for positive and negative voltage
detection. The circuit consists of two comparator channels
each with hysteresis, a unique Mode Select Input for channel
programming,a pinned out 2.54V reference,and two open collector
outputs capable of sinking in excess of 10mA. Each comparator
channel can be configured as either inverting or noninverting
by the Mode Select Input. This allows over, under, and window
detection of positive and negative voltages. The minimum supply
voltage needed for these devices to be fully functional is 2.0V
for positive voltage sensing and 4.0 V for negative voltage sensing.
Applications include direct monitoring of positive and negative
voltages used in appliance, automotive, consumer, and industrial
equipment.
Features
Unique Mode Select Input Allows Channel Programming
Over, Under, and Window Voltage Detection
Positive and Negative Voltage Detection
Fully Functional at 2.0 V for Positive Voltage Sensing and 4.0V
for Negative Voltage Sensing
Pinned Out 2.54 V Reference with Current Limit Protection
Low Standby Current
Open Collector Outputs for Enhanced Device Flexibility
NCV Prefix for Automotive and Other Applications Requiring Site
and Control Changes
Pb−Free Packages are Available

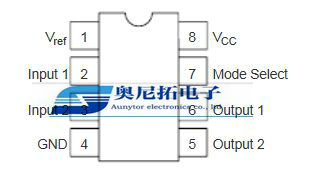

PIN CONNECTIONS

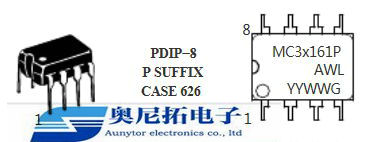

PDIP−8

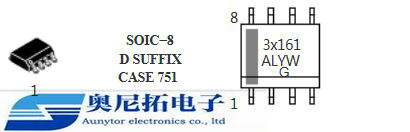

SOIC−8

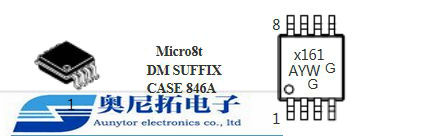

Micro8t
P/N Package
MC34161D SOIC−8
MC34161DG SOIC−8(Pb−Free)
MC34161DR2 SOIC−8
MC34161DR2G SOIC−8(Pb−Free)
MC34161DMR2 Micro8
MC34161DMR2G Micro8(Pb−Free)
MC34161P PDIP−8
MC34161PG PDIP−8(Pb−Free)
MC33161D SOIC−8
MC33161DG SOIC−8(Pb−Free)
MC33161DR2 SOIC−8
MC33161DR2G SOIC−8(Pb−Free)
MC33161DMR2 Micro8
MC33161DMR2G Micro8(Pb−Free)
MC33161P PDIP−8
MC33161PG PDIP−8(Pb−Free)
NCV33161DR2* SOIC−8
