Product Description
The EL2480 is a quad current-feedback operational amplifier
which achieves a -3dB bandwidth of 250MHz at a gain of +1
while consuming only 3mA of supply current per amplifier. It
will operate with dual supplies ranging from ±1.5V to ±6V,or
from single supplies ranging from +3V to +12V.In spite of its
low supply current, the EL2480 can output 55mA while
swinging to ±4V on ±5V supplies. These attributes make the
EL2480 an excellent choice for low power and/or low voltage
cable-driver,HDSL,or RGB applications.
For triple applications with disable,consider the EL2386 (16-
pin triple)
Features
Quad topology
3mA supply current (per amplifier)
250MHz -3dB bandwidth
Low cost
Single- and dual-supply operation down to ±1.5V
0.05%/0.05° diff. gain/diff. phase into 150Ω
1200V/µs slew rate
Large output drive current - 55mA
Also available with disable in triple
Pb-Free plus Anneal available (RoHS compliant)
Applications
Low power/battery applications
HDSL amplifiers
Video amplifiers
Cable drivers
RGB amplifiers
Test equipment amplifiers
Current to voltage converters

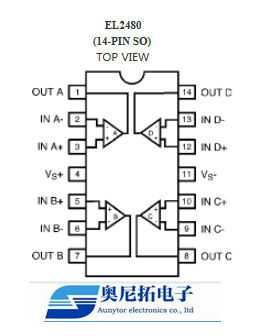

Pinout
P/N Package
EL2480CS SO14
EL2480CS-T7 SO14
EL2480CS-T13 SO14
EL2480CSZ SO14
EL2480CSZ-T7 SO14
EL2480CSZ-T13 SO14
